Introduction
The most reliable cable available compared to the standard ones is the Custom Mini SAS SFF-8087 cable assemblies with the highest reliability, flexibility in signal quality and design and hence is central to enterprise applications, as well as to OEM applications. Off the shelf products might not be adequate in the fast data storage space where every performance factor counts and therefore, integration is not optimal or the failure probability is more likely. I am an engineer with more than 10-year experience in designing high speed cables and have experience in OEM customization of simple interconnects to high precision parts that reduce costs in the long run and achieve efficiency of a system.
The paper justifies the reason why custom SAS cables made by OEM are significant, how they are technically designed, advantages of the customization, the way they are made, and how they are applied in practice. You might be creating RAID systems, or adding capacity to your data center, you would find that a collaboration with a manufacturer specializing in SFF-8087 cable assemblies would be in a position to furnish you with custom-configured cable assemblies.

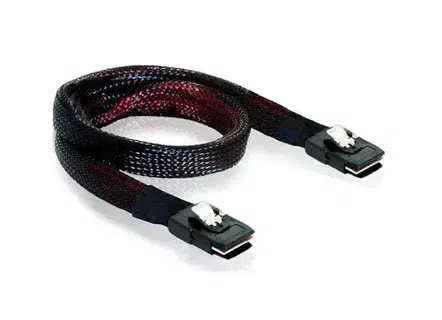

What Is a Mini SAS SFF-8087 Cable Assembly?
Cooked as per the SAS 2.0 structure, the Mini SAS SFF-8087 is a 36 pin internal connector standard, with a 6 Gbps per lane data rate, and a maximum aggregate bandwidth of 24 Gbps across four lanes. It provides the basis of attaching the RAID controllers, host bus adapters (HBAs), or server motherboards to the prodrive in the enterprise application. This connector is relatively wide with the designs of the predecessors being heavier and thus can easily fit in the tight server chassis enabling easy multi-drive systems.
The simplest form of the cable structure of SAS is a combination of differential pairs of transmit (TX) and receive (RX) signals, grounded shield to minimize crosstalk, and sideband pins to facilitate management, including drive status. The mating care is ensured with the help of the lock-latch housing and the gold-plated contacts are not corroded after thousands of cycles. Kingda is used in custom assemblies with low-loss insulation and multi-layer shielding, which is appropriate in a high-vibration or EMI-prone environment. It will be a familiar and reliable bridge to storage technology experts between SAS controllers and SATA/SAS drives and will offer backwards compatibility to simplify hybrid arrays.
Why Choose Custom SAS Cable Assemblies Over Standard Cables
The Mini SAS SFF-8087 was cooked to the SAS 2.0 format, a 36 pin internal connector standard, has a data rate of 6 Gbps per lane, and has a maximum bandwidth of 24 Gbps when using four lanes. On the enterprise application, it offers the foundation of connecting the RAID controllers, host bus adapters (HBAs), or server motherboards to the prodrive. This connector is comparatively broad and the designs of the predecessors were heavier and can thus fit with ease in the tight server chassis thus making the multi-drive systems easy.
The simplest version of the cable structure of SAS is a combination of transmit (TX) and receive (RX) signals in the form of differential pairs grounded shield to reduce crosstalk and sideband pins to enable management (such as drive status). Mating care is safeguarded by the lock-latch housing and the gold-plated contacts do not corrode even after thousands of cycles. Kingda may be used in custom assemblies with low-loss insulation, multi-layer shielding, which is suitable in a high-vibration or EMI prone environment. It will be a trusted and well-known pathway to storage technology specialists among SAS controllers and SATA/SAS drives and will provide backwards compatibility to ease hybrid arrays.
OEM Design and Engineering Capabilities
OEM manufacturers like Kingda collaborate using design to deliver where signal integrity analysis tools like HFSS are used to model impedance and crosstalk. We keep SAS cable impedance at 85 o -10% differential that is required to minimise reflections in multi-lane designs. The second one is prototype verification which ensures that your cables fit well in your backplane or enclosure.
The material should be selected: Dielectric material may be employed with low insertion loss and the halogen-free jackets will be environmentally-friendly. Our own R&D department has a history of over 10 years of staff R&D, hence designs are developed quickly, even within a few days. The compliance standards are the UL, RoHS and REACH; the former is used to provide the safety of the product, and the latter enhance the quality management standard. It is not just a simple process of passing the specifications, as is the case of OEM SAS cable development work, but beyond it, as was in the instances when we developed the Mini SAS prototype production that had to be zero-downtime performance against the AI server requirements.
Manufacturing Process for Custom SFF-8087 Cable Assemblies
Kingda produces SAS cables through automation and tight control, hence, every assembly of the cable is of enterprise standard.
- Cable Design and Drawing Approval: The specifications of the client are starting here, CAD drawings of length, shielding and connectors. Flexibility to have such as 28 AWG gauge of wire to be approved.
- Shielding & crimping Process: The stripped wire is twisted in to a differential pair and then surrounded by foil and braided shields to cover not less than 95 percent of the wire.
- Connector Soldering/ Assembly: Solder gold-plated pin soldering takes place in an automated operation followed by the assembly and latch-lock housing overmolding to offer strain relief.
- Full Continuity + Impedance Check 100% checks of each cable-continuity of opens / short / TDR of impedance.
- Packaging and Labeling Final products are marked with special labels (e.g., serial number, barcode), and shipping protection.
Visual inspection and burn-in control cable assemblies, robotic crimpers minimize the human operator error. Our SFF-8087 production flow that has been improved since 2012, and offers batches between 100 to10,000units, which is of uniform quality.
Quality Testing and Signal Integrity Assurance
Compromised signal integrity is difficult to go along with high speed and hence our SAS cable test program is comprehensive. Time Domain Reflectometry (TDR) is applied and it is ensured that the cable has continuity in the impedance and so there is no discontinuity that can cause any reflection. The overlay of waveforms is known as eye diagram testing and it measures jitter and noise margins- a large eye is a good sign that transmission at 6 Gbps is good.
The vector network analyzers assist us to measure insertion loss (less than 6 dB at 3 GHz) and return loss (greater than 20 dB) and ensure that energy reflection is insignificant. This is because the shielded chamber EMI/EMC testing is carried out to ascertain that SFF-8087 signal integrity under interference is acceptable. The data are traced and all the tests are in compliance with SAS-2. This is an EMI shielded cable assemblies method that has helped the customers to achieve a 99.9% uptime in the data centers and this goes to show that we are quality conscious first.
Customization Options for Different Applications

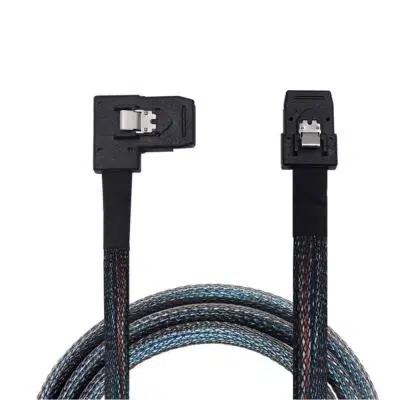

The customization makes an excellent cable perfect. In cable length and bending tolerance we have 0.1m up to 2m with flexible jackets that can resist 10000 or more bends. The connector types are straight type to fit standard plugs, angled type to fit space constrained chassis or reverse type to fit fanout connector designs.

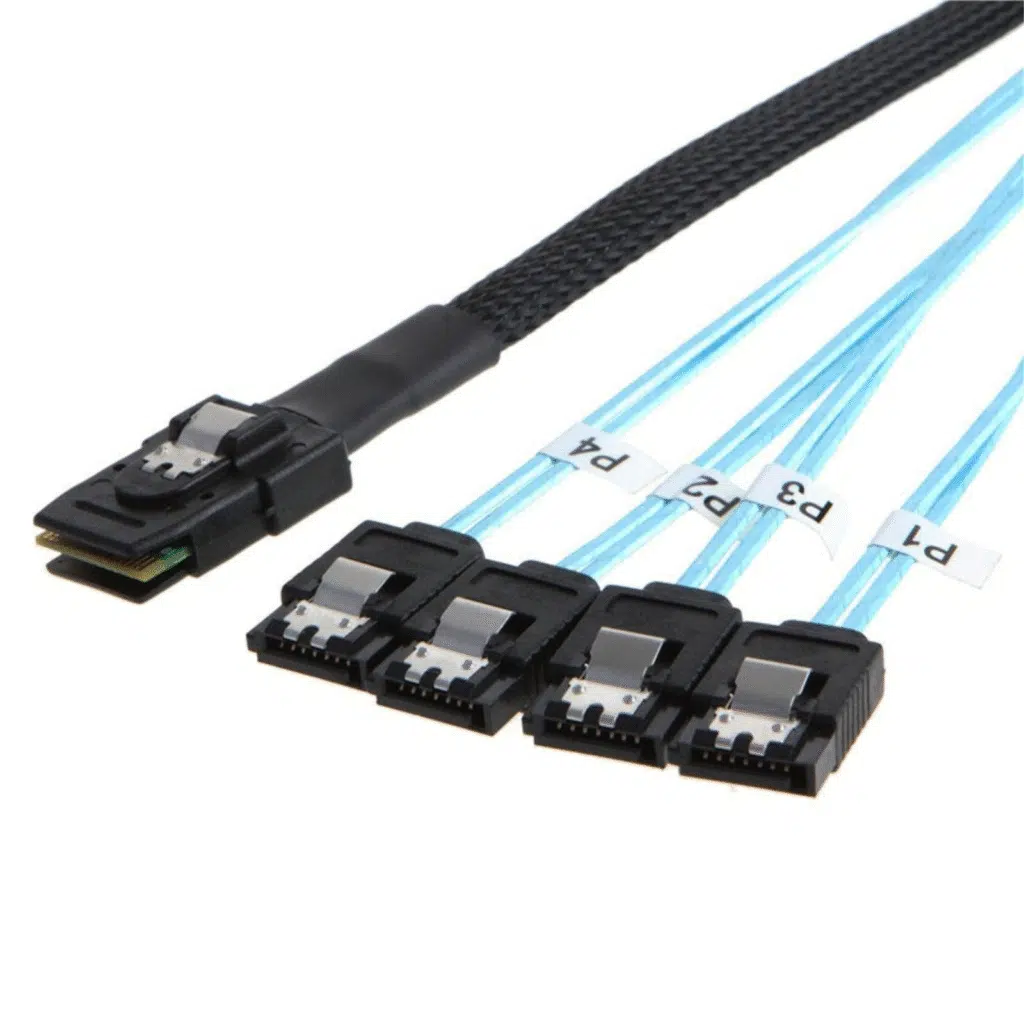

The breakout assemblies such as SFF-8087 to 4x SATA support the hybrid SAS/SATA arrays and the labeling and traceability of lasser-etched serials or color-coding makes the large-scale deployment easier. These mini SAS solutions are configured to meet many different requirements, such as variations in SAS connector type in branded servers to extreme environments in industrial equipment.
Key Benefits of OEM Custom SAS Solutions
The advantages associated with collaborating in OEM SAS cable are:
- Better performance: With the stable impedance and signal quality, 6 Gbps or 12 Gbps will be able to operate smoothly, and latency time is also reduced during rebuild operation of a RAID.
- Design Flexibility: Creates individual designs like curved routing of blades servers to utilize more space.
- Brand Consistency: Professional custom logos, labels, and packaging make your product solid.
- Less-Long-term cost- Clients report that savings are 40 percent in three years.
- Scalability: Scale to SAS-3/SAS-4.
These make customized high-speed cables a winning competitive strategy of competitive advantages.

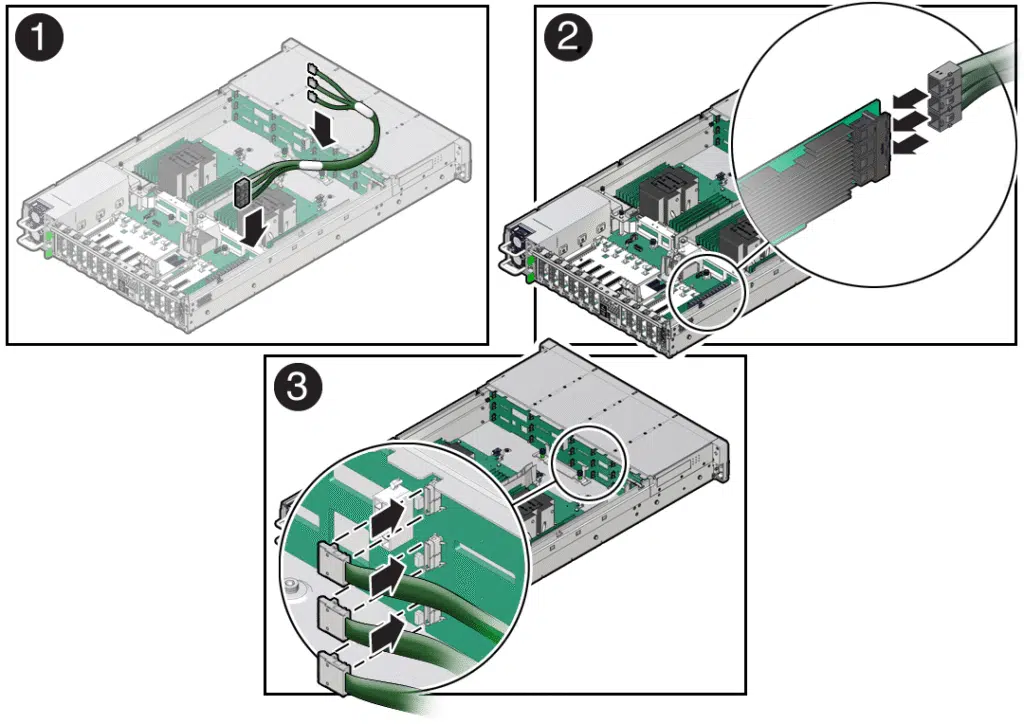

Real-World Applications
In financial database RAID systems, SAS cables with custom SFF-8087 assemblies are used to power the RAIDs in enterprise storage to maintain zero-loss transactions. In the case of HPC SAS assemblies, they connect clusters of GPUs in AI training, which process large data streams with no bottlenecks. Tailor made long in AI data infrastructure cables, edge servers are optimized, reducing power consumption through better cooling.
A cloud service provider, who was utilizing our custom SAS breakout assemblies, scaled out 100-node enclosures with them, achieving a 50 percent downtime reduction by ensuring an accurate fit and test. These applications demonstrate the reduction of problems in mission-critical environments by using OEM solutions.
Why Partner with Kingda for Custom SFF-8087 Cable Assemblies
Dongguan Kingda Electronic Technology Co., Ltd is a professional manufacturer which specializes in high speed transmission cable to servers and industrial equipments and it is located in Guangdong, China, and it was founded in 2012. We are specialized in MCIO PCIe Gen5, HD Mini SAS, Slimline SAS, OCuLink, U.2 SFF-8639, SFP/QSFP and USB3.1/USB4.
Our philosophy is of quality first, customer first and we are focused on providing solutions based on this philosophy. Our team of skilled employees in the realm of R&D, manufacturing, and quality assurance gives us a chance to offer professional products with the support of ISO 9001 certification. Being a China-based custom SAS cable manufacturer, we have the in-house strengths to fast prototyping and scalable production to international customers.
Conclusion — Precision OEM Cables Drive Performance
Fast performance, consistent and combined architecture Custom Mini SAS SFF-8087 assemblies are also offered to help improve the performance of the data as well as reliability besides embedding in the enterprise and industrial systems. Custom-made OEMs save cost within the long run since it invests on reliability.
Require low quality custom Mini SAS SFF-8087 assemblies? Acquire Dongguan Kingda Electronic Technology Co., Ltd in order to receive OEM /ODM solutions that will last and perform.
