Understanding Video Cable Basics
Video cables carry visual information between video recorders and other devices as defined by the video electronics standards association , and the different cables available cannot be more different. Various connector types have a great variation in quality, resolution support, and compatibility. Newer video cabling carries an audio signal as well as the video signal, whereas older connecters may require audio connectors.
Important aspects to consider when purchasing video cables include the maximum resolution being supported, the refresh rates, the length limitation of the cable, and compatibility with the various devices. Digital channels tend to have a higher level of quality than analog equivalents, and less signal loss on long routes.
By being familiar with these internals you can avoid obvious errors such as buying cables incompatible with your intended resolution or to end up paying more money than you need to on a cable to satisfy your particular needs.

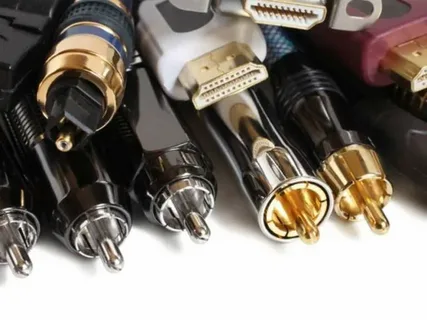

Popular Digital Video Connectors
HDMI: The Modern Standard

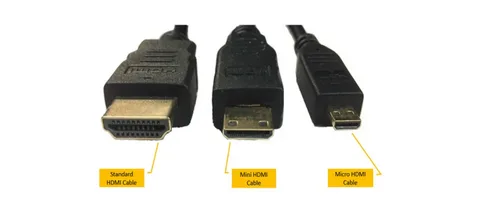

HDMI- High-Definition Multimedia Interface is currently the most frequently used interface in most contemporary appliances and is designed to be backward compatible . As rectangular connectors with 19 pins, they are able to transmit audio and video via single cable which makes them easy to setup and less clutter.
HDMI backward compatibility is designed so that older devices will often work with newer devices, although some features may be unavailable to the older device or operating at the older device performance level. HDMI versions differ between 1.4 and 2.1 with newer versions supporting higher resolutions and refresh rates. HDM 2.1 supports 8K and 4K at a refresh rate of 60 Hz and 120 Hz, respectively, thus giving it support with the future of next-generation gaming and entertainment system. The connector is available in three sizes standard, mini and micro to suit home theaters to mobile devices.
Some of its widespread uses are to connect video game devices such as the PlayStation, Roku media player, laptops, and Blue-Ray players to TVs and monitors. The majority of the consumer electronics devices created since 2010 feature HDMI ports and monitor cables .
DisplayPort: Professional Grade Performance
DisplayPort connectors have a unique L-shaped form with 20 pins, and are mostly implemented in display monitors, and professional monitors. The connector is most effective when multiple monitors are used and high refresh to be realized in gaming.
The latest DisplayPort 1.4 is able to support 8K at 60Hz or 4K at 120Hz and the newer 2.0 can handle even greater resolutions. This connector has a locking device; this makes it suitable in permanent installations as information cannot get accidentally disconnected.
Mini DisplayPort, developed by Apple, is the same but in a smaller size and also considered a single connector. Most laptop PCs and tablets employ a smaller form to connect to a computer monitor , and frequently need adapters to be driven on standard DisplayPort or HDMI monitors.
USB-C with DisplayPort Alt Mode

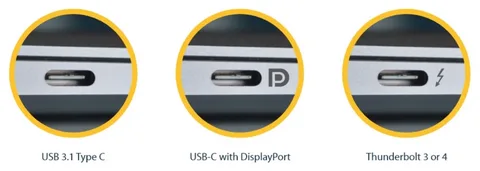

USB-C is the solution to universal connectivity in the future as USB-C can be used to carry power, data, stereo audio, and video output in the same connector, which is reversible. USB-C supports DisplayPort Alt Mode which can be used to drive a 4K display and charge a device connected at the same time.
Such flexibility means that USB-C is especially useful in mobile applications and in minimalist environments. Newer laptops are beginning to use USB-C exclusively, with some port options lost to the change in port type however remaining compatible. The connector is large and its reversible architecture prevents connection rage.
Not every USB-C port can present a video, though, so it is necessary to check the specification before believing in the potential compatibility.
Legacy Analog Video Connectors
VGA: The Veteran Connection

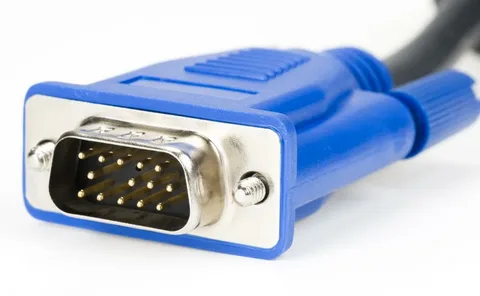

In Video Graphics Array (VGA) connectors, there are 15 pins placed in 3 rows which are readily distinguished by the blue color coding visible on numerous devices. Although VGA is a pre- modern analog standard created in the 1980s, it continues to be widespread as the connection of older computers, projectors and industrial machines.
VGA can run up to 2048 x 1536 resolution at 85 Hz, but in-practice, it is limited to 1920 x 1080. It will lose signal as the cable is extended over long lengths and the interference, and color-shifting is a problem inherent with analogue.
Although newer ones do not usually have VGA ports, adapters and converters can be used to connect to a digital display. This is useful in having knowledge of link dvi and VGA to maintain legacy systems and diagnosing older equipment.
DVI: Digital Transition Technology
Digital visual interface (DVI) was an intermediate between the initially analog VGA and the contemporary digital standards. DVI connectors can be in three different forms of DVI-A, DVI-D and DVI-I; that is, analog only, digital only and combined analog and digital as well.
The disk-shaped connector with a large number of pins delivers high quality images than VGA and is compatible with the existing display infrastructure. DVI-D can drive resolutions up to 2560 1600 at 60Hz, thus can be used in most applications now.
DVI is widespread on older graphics cards, monitor, and professional devices, especially those using dvi d single link. The knowledge of the DVI types would avoid compatibility cases when connecting devices or buying adapters
Specialized Video Connectors

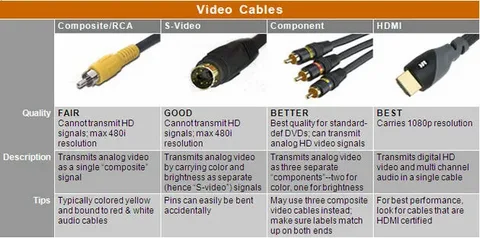

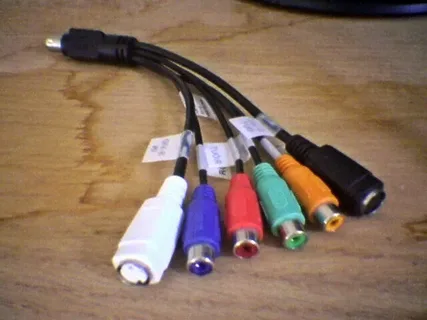

Component Video: Professional Analog
Component video transmits video using three distinct cables (red, green, blue) and therefore contains the highest quality of analog connection. The system has a separation of luminance and color information to make the reproduction of images superior over composite video signal.
Professional broadcast devices, premium DVD players, and game consoles tend to have component video outputs, often utilizing an rca connector. The system, along with hdmi cables, is relevant to high definition analog applications since it supports up to 1080p resolution.
The component video needs special audio cables since only the video signal is transmitted. The multi cable demand complicates the installation process but returns impressive analog video performance.
S-Video: Superior Composite Alternative

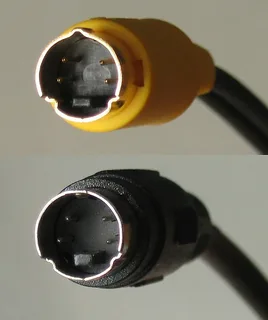

S-Video (Separate Video) has stereotypically circular characteristics of four or seven pins, depending on the implementation. This connector splits the luminance (brightness) and chrominance (color) signals to produce a higher quality than the composite video.
Popular on older camcorders, gaming consoles, and televisions, S-Video offers a large increase in quality compared to a composite connection while supporting stereo signal and is fairly easy to add.
The small size and frail pins of the connector render it rather fragile, and care should be used when connecting the connector and when disconnecting it.
Audio Integration in Video Cables
The current video standards are increasingly combining an audio transmission at the same standard, which makes the system easier to put together and be less cable-proliferating. Having multi-channel audio video signals means that most applications no longer require a separate audio connection because the audio is also provided by both HDMI and DisplayPort.
Knowledge about audio ability avoids some of the set-up blunders like using separate audio cables when the video connection has the ability of transmitting sound signals. This is more so because this information is very useful in case of trouble shooting in sound items of a multimedia system.
Demonstration in operation Thanks to the simplicity of its design, the listed features of using the technology in operation, the described product, in general, consists of the following only.
Cable Length and Signal Quality Considerations
Video cable performance differs considerably with length, at least in the analog case, which is a significant concern for cable tv installations . Digital signals will retain quality over a distance but still there are limitations due to the resolution and the requirement on the refresh rate.
HDMIs work within 25 feet range with shared 4K content However, 1080-8p signals may span far further without a loss of quality. DisplayPort has the same signal integrity as DisplayPort (with optional active cables to increase range, in special applications) audio and video signals.
Awareness of the length limitations, especially when using a breakout cable, limits the costly errors and achieves a predictable performance in your particular installation situation video interface.
Adapter and Converter Solutions
Video connectors vary so much that the connection of two different devices may require adapters or converters. Passive adapters can work where the signal is compatible, e.g. DisplayPort to HDMI digital-to-digital conversion.
A signal converter needs to be active when translating between digital and analog signals or a change of format hdmi connector. These devices are additional expenses and complexity, but allow compatibility between two systems that otherwise would not be compatible.
To select the correct type of an adapter prevents problems with functionality and provides superior signal in the mixed- connector environment.
Future-Proofing Your Video Setup
Video standards are advancing once again with 8K displays and those with high refresh game needs. Comprehending new standards, including single link options, would contribute to making good purchase decisions that are less likely to change soon dvi d dual link.
USB-C adoption continues to increase across device categories, and as a consequence may become the universal connector of the future. The new Thunderbolt 4 and USB4 specifications push bandwidth, with support up to even higher resolutions, and refresh rates dvi i single link.
With forward-compatible infrastructure, future investment cost in upgrades becomes cheaper and present requirements are satisfied adequately carry audio.
Quick Identification Reference Guide
Visual identification is still the mode of determining connector type that is the quickest video and audio. Primary distinguishing characteristics are:
HDMI: Rectangular shape with beveled corners, 19 pins are visible DisplayPort: Small oblong shape with lateral fastener, 20 pins USB-C: Small oval form, can be inserted in any direction VGA: Trapezoidal and the number of pins in three rows, commonly used color blue DVI: Large rectangular with a lot of holes can contain analog VGA pins digital connection
Pin configuration, size and color-coding all identify the device instantly, although in some cases labelling is indistinguishable or absent coaxial cable.
Troubleshooting Common Connection Issues
Connection issues usually have to do with video cards, non-corresponding resolutions, refresh rates or limitations on the cable than faulty equipment separate speakers. Reducing the resolution settings is recommended initially so that a user can be informed of the limits of capability usb ports.
We often solve compatibility problems caused by cable integrity checks, connector cleanliness checks, and secure connector checks. Chipped connectors as well as cable damage can be signaled by intermittent modules interface technology
Knowledge of device capabilities will avoid trying to connect in ways that do not exceed technical specifications and save problems and time wasted in attempting to make connections hdmi signals.
Professional Installation Considerations
Permanent installations need to be left differently to temporary connection Long-Term Reliability and Performance Differences Cable routing, strain relief, and the dvi i dual link environment all have an effect on long-term reliability and performance display device.
Professional models may have more shielding, stronger connector construction home theater equipment, and improved material that pays off at a higher cost where quality is required. Knowledge of when high quality cables actually make a real difference will avoid spending money on extraneous capabilities digital format.
In a permanent installation appropriate cable support and management avoids connector damage and signal loss due to connector induced noise video materials high definition displays.
Making the Right Choice for Your Needs
The best video cables to select depend on your particular needs, budget considerations and what your expansion plans are home theater system
. Cable match-ups with device specification will guarantee competence and performance without the same overspending cable boxes.
When making a purchase, consider what are your normal use scenarios, greatest resolution required, and amounts of cable needed control signals. Insight into these factors points you to the most cost effective solutions to your unique situation single link dvi d.
Conclusion: Mastering Video Cable Selection
Knowledge of the kind of video cables, what they can do, and how to identify them provides a firm grip when it comes to making the connection decisions av input. These connector types include legacy analog systems and the latest in digital displays and each has a purpose in current multimedia environments sound transmission.
Such familiarity avoids expensive errors, minimises time wasted during troubleshooting and maximally improves the performance by your video equipment such ports. After establishing a simple monitor connection, or designing a more complex multimedia system, knowledge of connector physics can make the process come easier and more successful picture quality.
