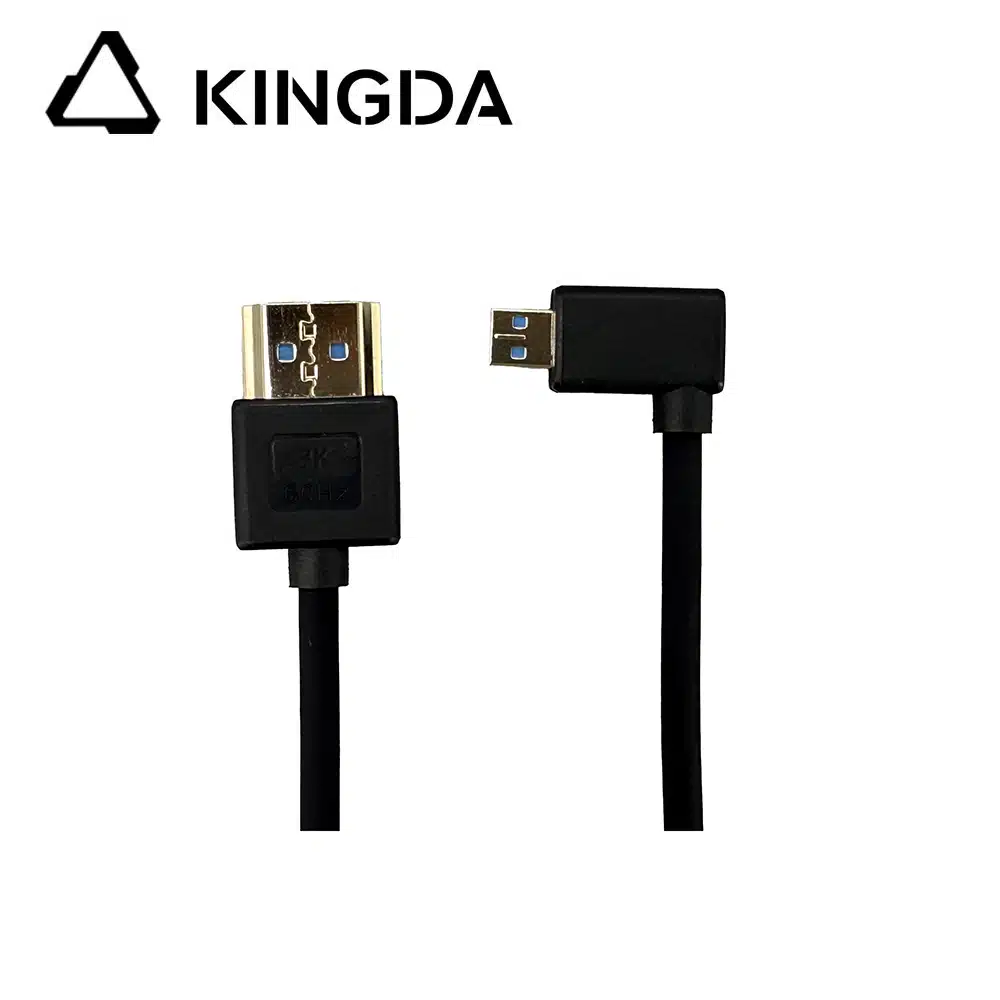

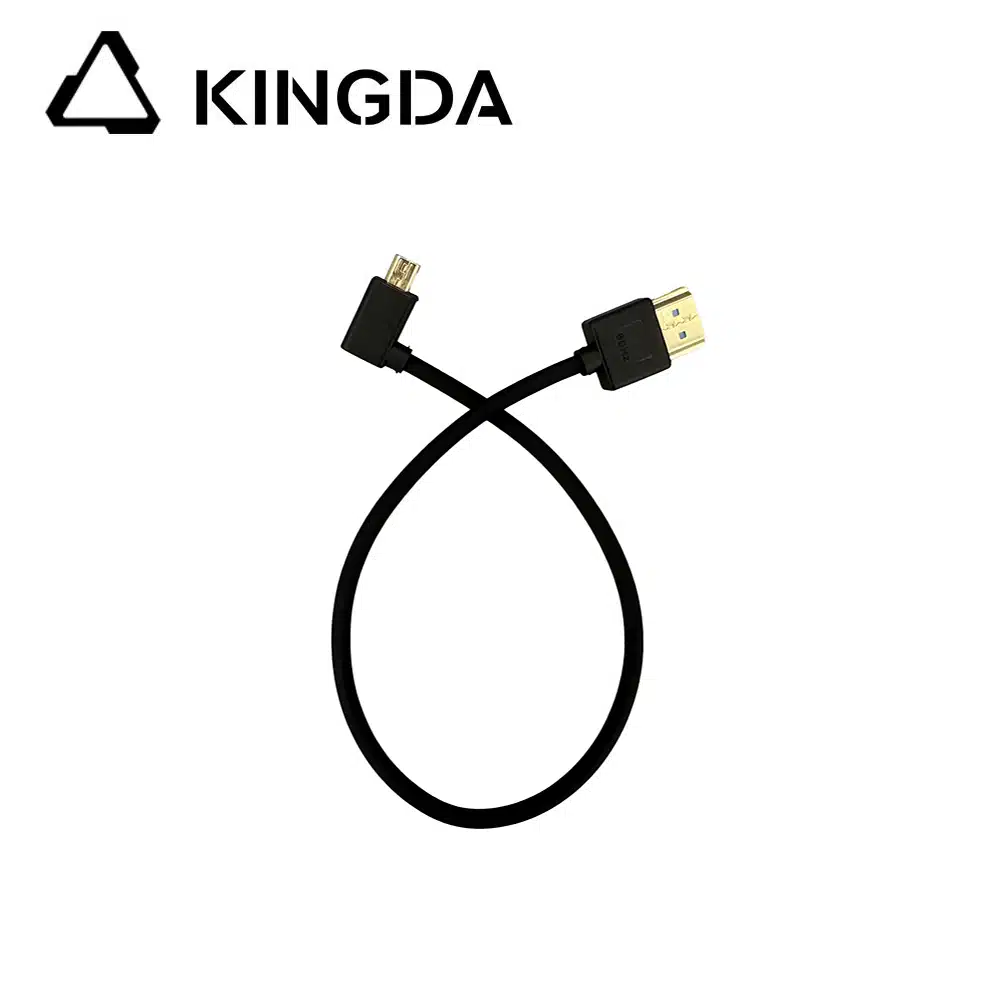

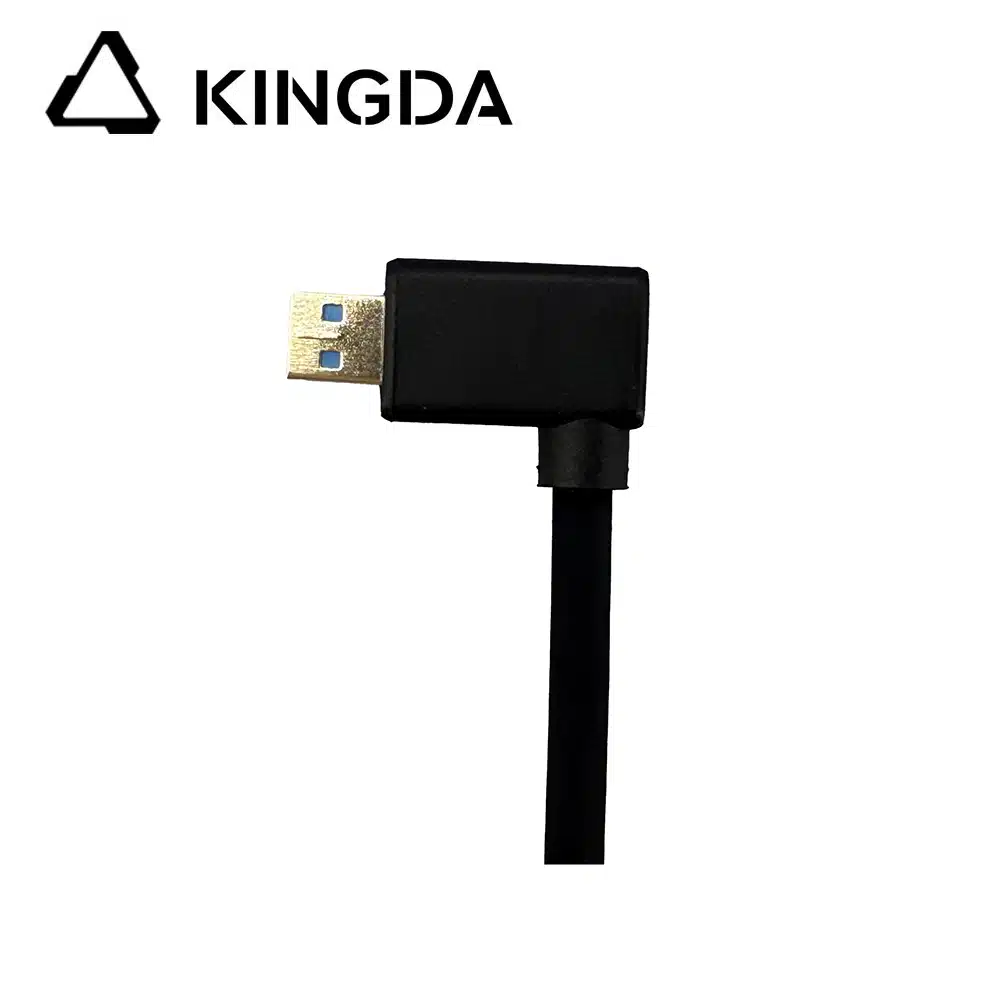

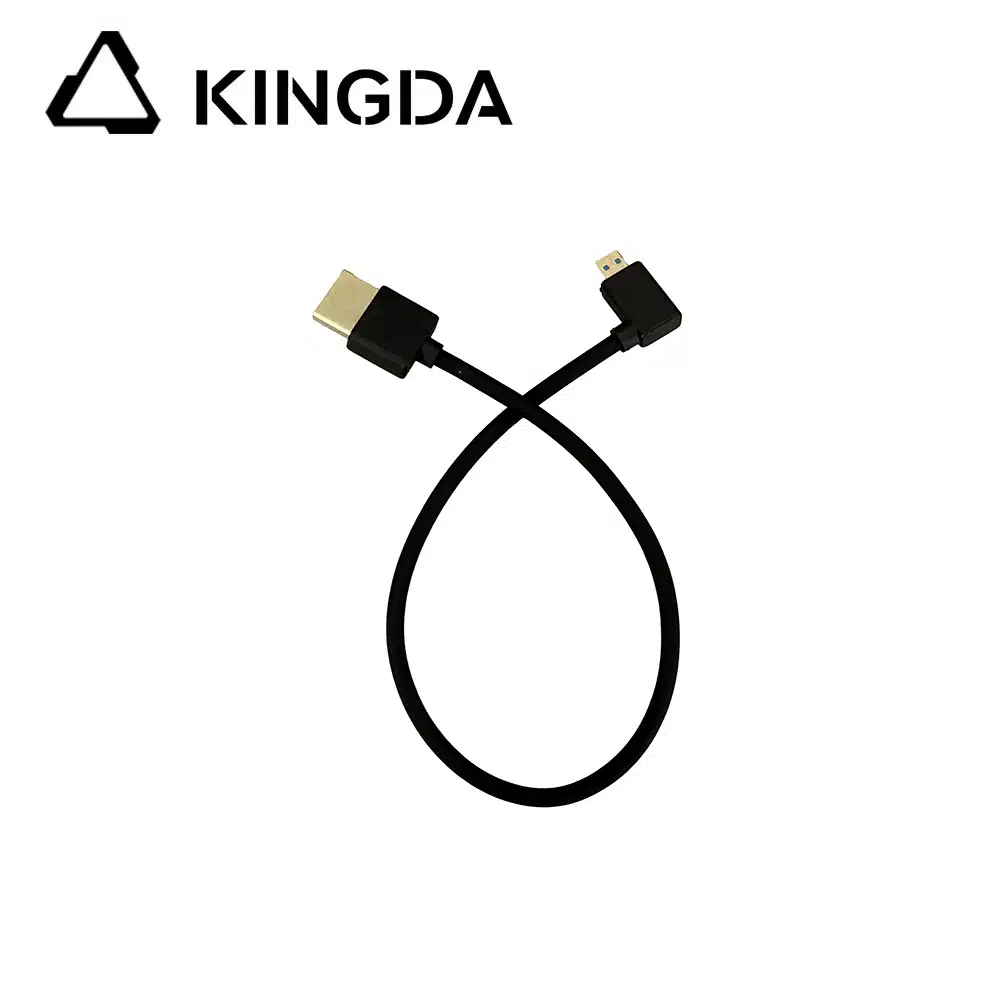

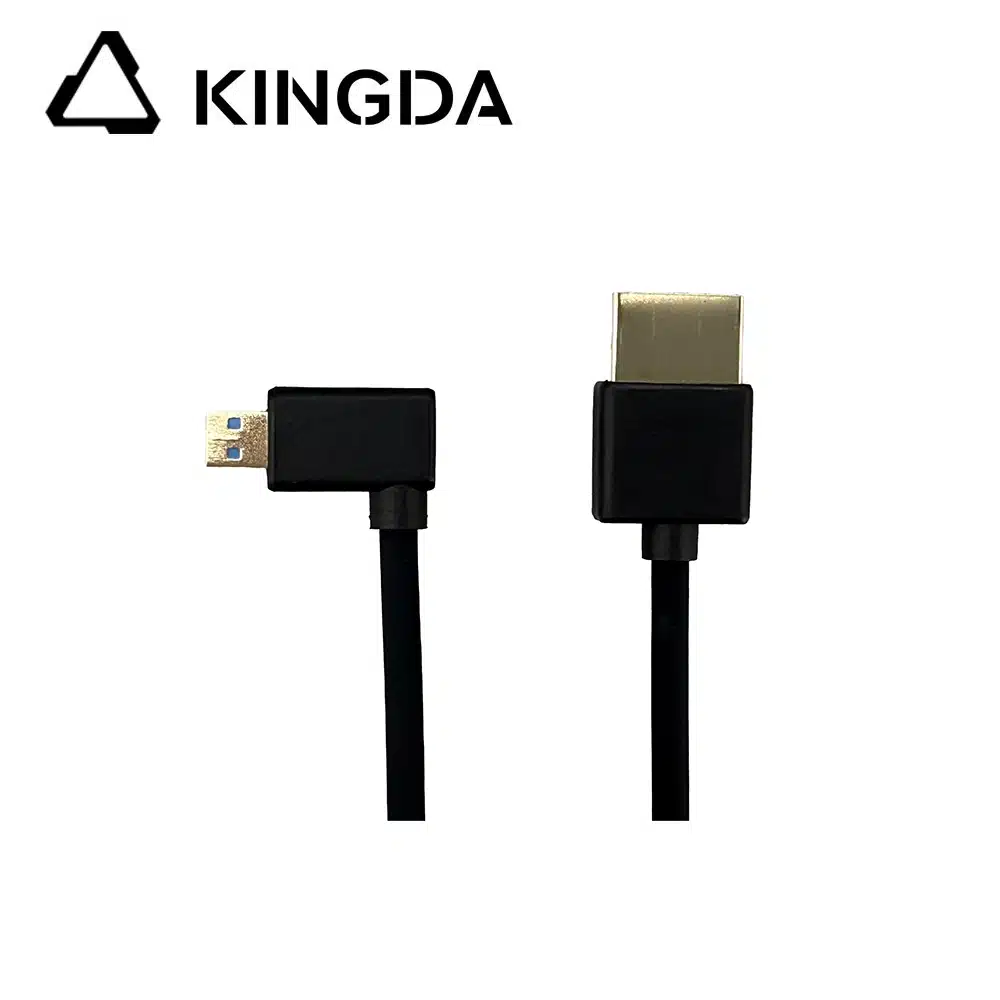

Ultra flexible and slim Standard 8K Silicone HDMI 2.1 Ultra High Speed Silicone right angle right turn right bend micro HDMI Cable 48Gbps Type D Silicone HDMI cable Ultra slim wire
Specifications：
- SiliconeHDMI TypeA Male TO micro HDMI Male Cable
- Gold plated connectors
- Conductor: BC (bare copper),
- Gauge: 36AWG
- Jacket: pvc jacket with Graphene technology shielding
- Length: 0.46/0.76m / 1m or others. (optional)
- Support 7680*4320,4096×2160, 3840×2160, 2560×1600, 2560×1440, 1920×1200, 1080p and etc. 8K@60hz,4k@120hz,Digital transfers at rates up to 48Gbps
- All materials with RoHS complaint
Warranty Information
Part number JD-HD08
Warranty 1 Year
Hardware
Gender A Male – micro HDMI Male
Cable Jacket Type Silicone
Cable Shield Type Graphene Technology
Connector Plating Gold
Connector(s)
Connector A 1 – HDMI (19 pin) Male
Connector B 1 – micro HDMI (19 pin ) Male
Physical CharacteristicsCable
Length 0.46M/0.76M /1M
Color Black
Connector Style Straight
Product Weight 2.1 oz [56 g]
Wire Gauge 36 AWG
Wire Diameter 3.8 millimeter
Packaging InformationPackage Quantity 1Shipping (Package)
Weight 2.6 oz [58 g]
Maximum Digital Resolutions 8K@60hz,4k@120hz
Ultra High Speed Ultra Slim Silicone right bend micro HDMI cable supports 8K@60HZ,4K@120HZ
HDMI Male to MINI HDMI Male cableSingle Color Molding Type24K Gold PlatedColor Optional| Electrical | |
| Quality Control system | Operation according to regulation & rules in ISO9001 |
| Voltage | DC300V |
| Insulation Resistance | 2M min |
| Contact Resistance | 5 ohm max |
| Working Temperature | -25C—80C |
| Data transfer rate | 48 Gbps Max |
Applications:
The Ultra thin HDMI cable widely used in COMPUTER, Multimedia, Monitor, DVD Player, Projector, HDTV, Car, Camera, HOME THEATER,SUPPER SLIM & THIN SHAPE:
The OD of the wire is 3.0millmeter, the shape of both ends of the cable is 50%~80% smaller than the common HDMI on the market, because it is made of special material (Graphene) and special process, the cable performance is ultra high shielding and ultra high transmission, Can reach 8K@60hz (7680* 4320@60Hz) resolution.SUPPER FLEXIBLE& SOFT:
The cable is made of special materials and professional manufacturing process.Wire is very soft and flexible so that can be easily rolled up and unrolled. When traveling, you can roll it up and pack it in a box that’s less than an inch 。Ultra high transmission performance:
Cable support 8K@60hz,4k@120hz. Digital transfers at rates up to 48GbpsUltra high bending resistance and high durability:
36AWG pure copper conductor, gold plated connector corrosion resistance, high durability; Solid copper conductor and graphene technology shielding support ultra high flexibility and ultra high shielding.Why Choose Our Customization Service?
Tailored to Your Application
We offer a wide range of customization options including cable length (from 0.2 m to over 10 m), wire gauge (28 AWG/32 AWG), jacket material (nylon, PVC, TPE), color, and labeling. This ensures the cable perfectly fits your hardware setup, installation space, and branding needs.
Flexible Connector Configuration
Beyond standard SFF-8643 and 4× SFF-8482 interfaces, we can adjust connector types and layouts — such as angled or straight plugs, power connector positioning, or hybrid outputs compatible with SAS and SATA — to guarantee seamless integration with your servers, HBAs, and backplanes.
Guaranteed Quality & Performance
All customized solutions maintain our high standards with gold-plated contacts and bare copper conductors, RoHS compliance, and support for up to 12 Gbps transfer rates. You can rely on excellent signal integrity, durability, and EMI resistance.
Fast Response & Scalable Orders
From technical evaluation to sample approval and mass production, we provide an efficient process. Small-batch prototyping and flexible large-volume orders are available to match your project timeline and production needs.
Custom Design Processing
Requirement Collection
Share your application details, including server type, interface specifications, cable length, and special requests.
Engineering Evaluation
Our R&D team analyzes your requirements and provides a tailored design proposal with technical drawings and material options.
Sample Development
Rapid prototyping and sample production are carried out for performance testing and verification.
Customer Approval
You review and approve the sample to confirm functionality, compatibility, and quality.
Mass Production
Once approved, we proceed with full-scale manufacturing under strict quality control standards.
Quality Inspection & Delivery
Each batch undergoes comprehensive testing before packaging and shipment to ensure reliability and consistency.
Service Highlights
| Advantage Category | Our Strengths |
|---|---|
| Customization Flexibility | Cable length, connector types, appearance, and materials can all be tailored to your needs. |
| Performance & Quality | Supports up to 12 Gbps; gold-plated contacts and bare copper conductors ensure high speed and stability. |
| Service Efficiency | Fast response for evaluation and sample approval; supports small-batch trial production. |
| Professional Engineering Support | Dedicated technical expertise and application-specific recommendations ensure seamless project integration. |
One-sentence summary:
When facing challenges such as interface compatibility, cable length, or space constraints in server storage, storage array expansion, or high-density backplane deployment, Kingda-Cables’ customization service delivers precise solutions with high performance, reliability, and deployment efficiency.
