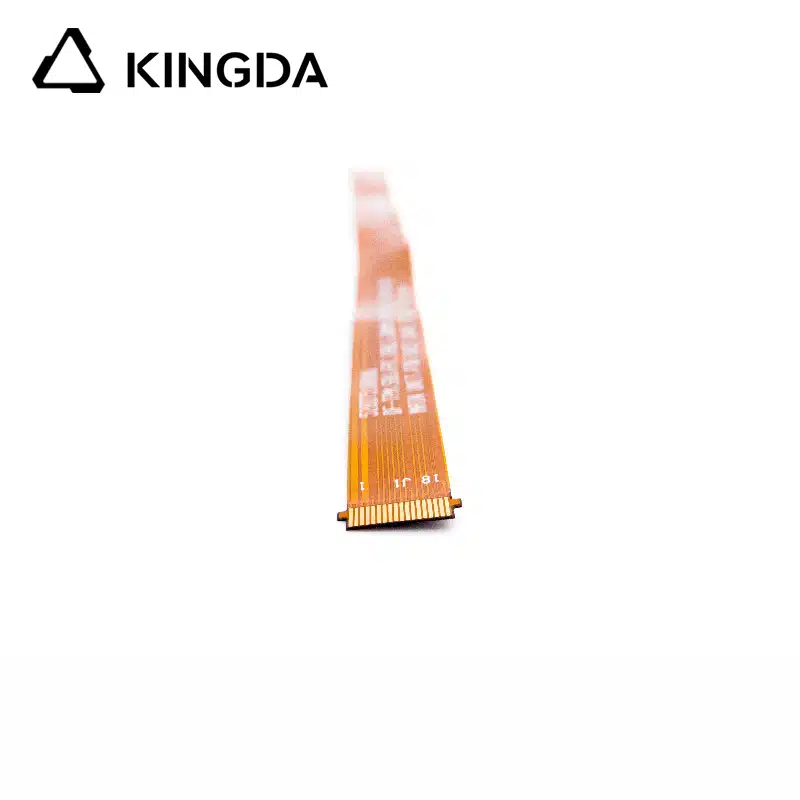

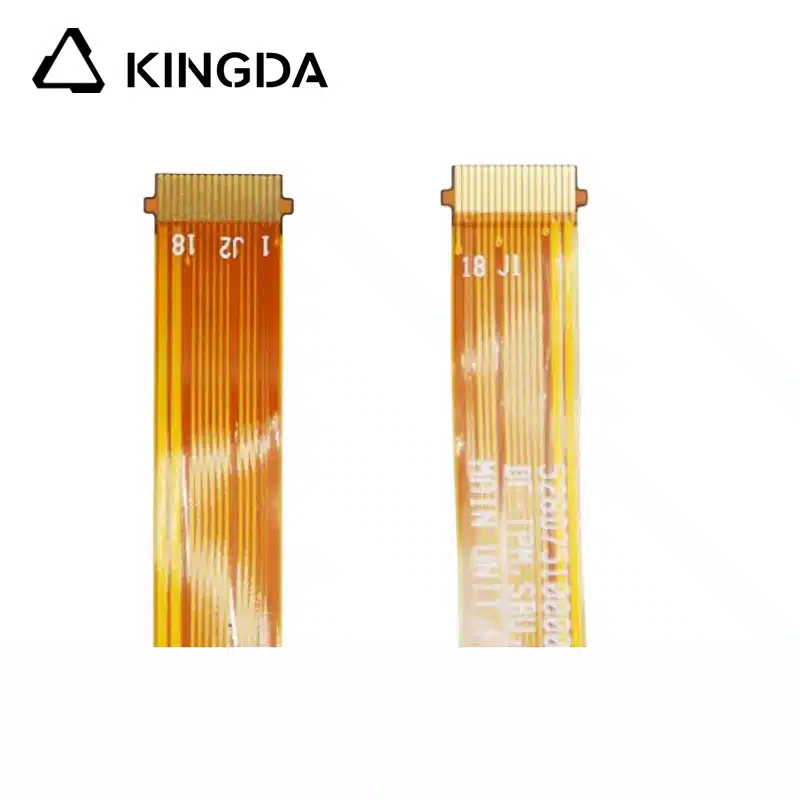

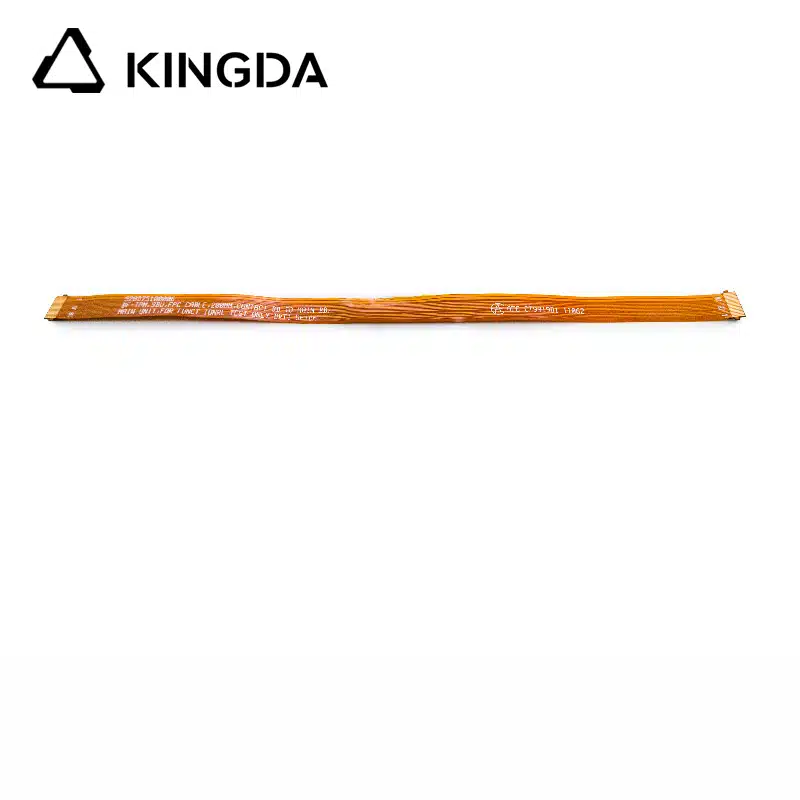

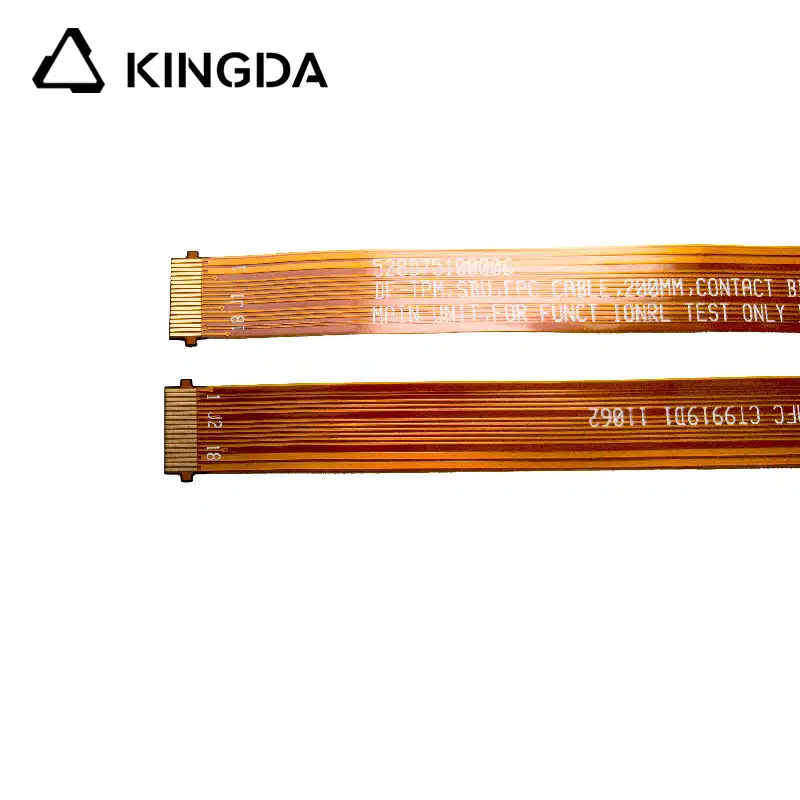

Smart OEM ODM Fast produce custom design 0.5mm pitch 6 to 50 pin flex flat fpc cable with stiffener
Warranty Information
Part number JD-IS02
Warranty 1 Year
Hardware
Gender Single layer, multi-layer, hollow FPC, separated-layer FPC,
Connector(s
Connector A
Connector B
Physical Characteristics
Cable Length
Color
Connector Style Product Weight
Wire Gauge
Wire Diameter
Packaging Information Package Quantity 1Shipping (Package)
Weight
Maximum Digital Resolutions
Single layer, multi-layer, hollow FPC, separated-layer FPC,
| Item | FPC Capability |
| Product types | Single layer, double layer,multi-layer, hollow FPC, separated-layer FPC, flex-rigid |
| Layer | 1-14 layer flex pcb, 2-14 layer flex-rigid pcb |
| Maximum finished board size | 250*5000mm |
| Board thickness | FPC,0.06-0.4mm; Flex-rigid PCB, 0.25-6.0mm |
| Min. trace width & spacing | 0.045/0.045MM |
| Base material | PI, PET, Electrolytic Copper, Rolled Copper |
| Tolerance for finished product | ±0.03mm |
| Copper thickness | 12UM, 18UM, 36UM, 70UM |
| PTH Hole Dia.Tolerance(plated-through-hole) | ±0.05mm |

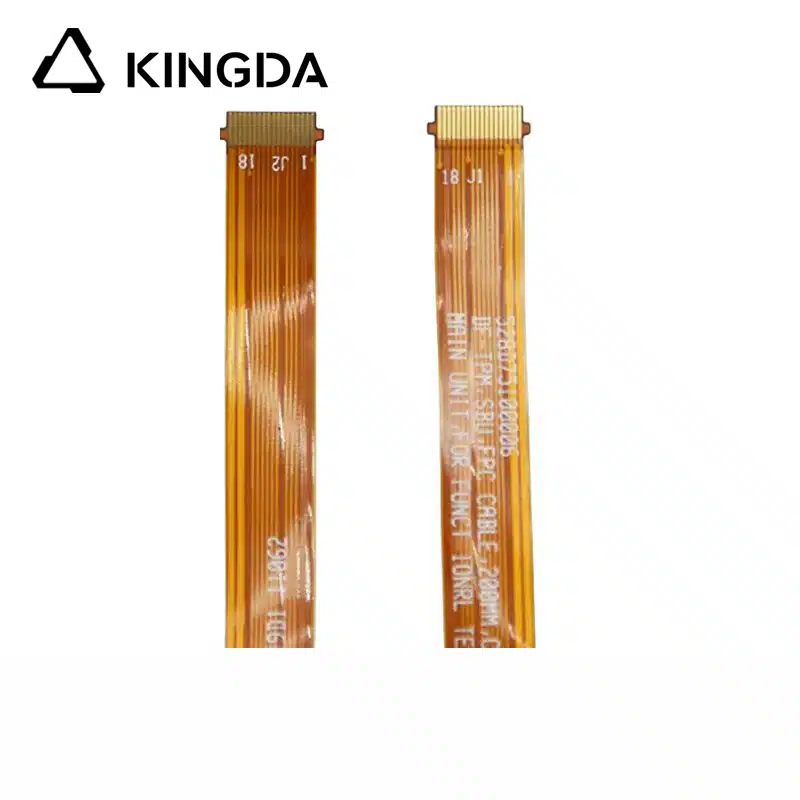

| Stiffener | FR4/PI/PET/SUS/PSA |
| Impedance Control of Finished Product | 50Ω – 120Ω |
| Acceptance criteria | Factory production standard, GB；IPC-650, IPC-6012, IPC-6013 II, IPC-6013 III, etc |
Applications:
The FPC cable widely used in COMPUTER, Consumer ElectronicsInterface:
- FPC cable used for signal transimission and iternal layout in fields of diplay, flat television set, printer, scanner, computer digital camera, video camera, fax machine and copier, Agilent tester etc
· SUPPER FLEXIBLE & SOFT:
The cable is made of special materials and professional manufacturing process. Wire is very soft and flexible so that can be easily rolled up and unrolled.Why Choose Our Customization Service?
Tailored to Your Application
We offer a wide range of customization options including cable length (from 0.2 m to over 10 m), wire gauge (28 AWG/32 AWG), jacket material (nylon, PVC, TPE), color, and labeling. This ensures the cable perfectly fits your hardware setup, installation space, and branding needs.
Flexible Connector Configuration
Beyond standard SFF-8643 and 4× SFF-8482 interfaces, we can adjust connector types and layouts — such as angled or straight plugs, power connector positioning, or hybrid outputs compatible with SAS and SATA — to guarantee seamless integration with your servers, HBAs, and backplanes.
Guaranteed Quality & Performance
All customized solutions maintain our high standards with gold-plated contacts and bare copper conductors, RoHS compliance, and support for up to 12 Gbps transfer rates. You can rely on excellent signal integrity, durability, and EMI resistance.
Fast Response & Scalable Orders
From technical evaluation to sample approval and mass production, we provide an efficient process. Small-batch prototyping and flexible large-volume orders are available to match your project timeline and production needs.
Custom Design Processing
Requirement Collection
Share your application details, including server type, interface specifications, cable length, and special requests.
Engineering Evaluation
Our R&D team analyzes your requirements and provides a tailored design proposal with technical drawings and material options.
Sample Development
Rapid prototyping and sample production are carried out for performance testing and verification.
Customer Approval
You review and approve the sample to confirm functionality, compatibility, and quality.
Mass Production
Once approved, we proceed with full-scale manufacturing under strict quality control standards.
Quality Inspection & Delivery
Each batch undergoes comprehensive testing before packaging and shipment to ensure reliability and consistency.
Service Highlights
| Advantage Category | Our Strengths |
|---|---|
| Customization Flexibility | Cable length, connector types, appearance, and materials can all be tailored to your needs. |
| Performance & Quality | Supports up to 12 Gbps; gold-plated contacts and bare copper conductors ensure high speed and stability. |
| Service Efficiency | Fast response for evaluation and sample approval; supports small-batch trial production. |
| Professional Engineering Support | Dedicated technical expertise and application-specific recommendations ensure seamless project integration. |
One-sentence summary:
When facing challenges such as interface compatibility, cable length, or space constraints in server storage, storage array expansion, or high-density backplane deployment, Kingda-Cables’ customization service delivers precise solutions with high performance, reliability, and deployment efficiency.
