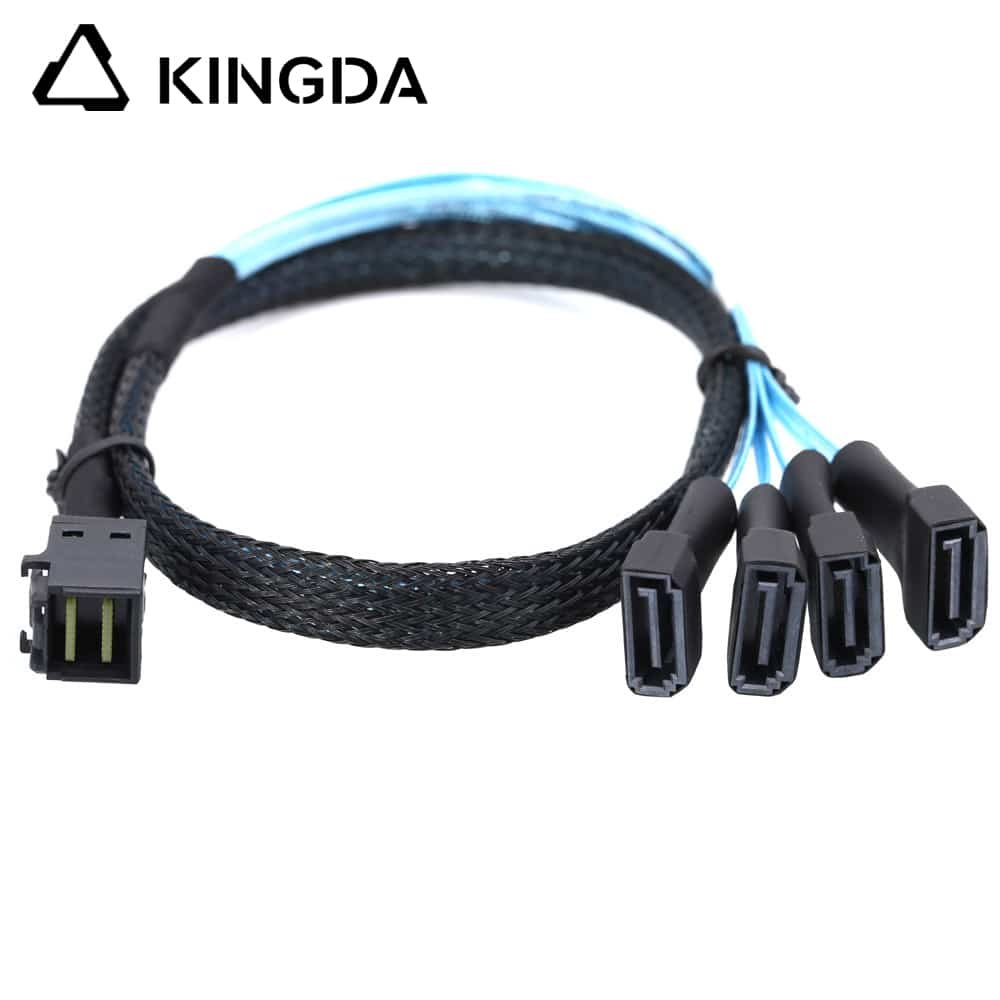

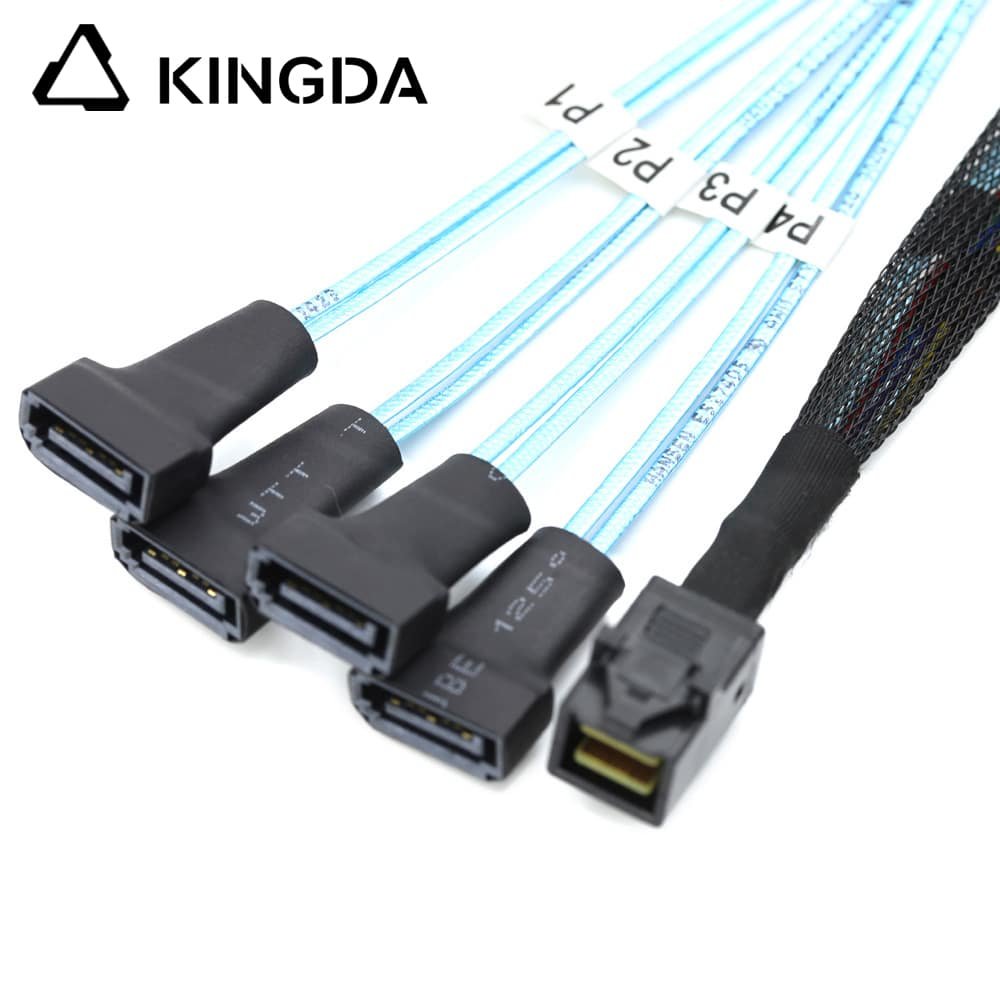

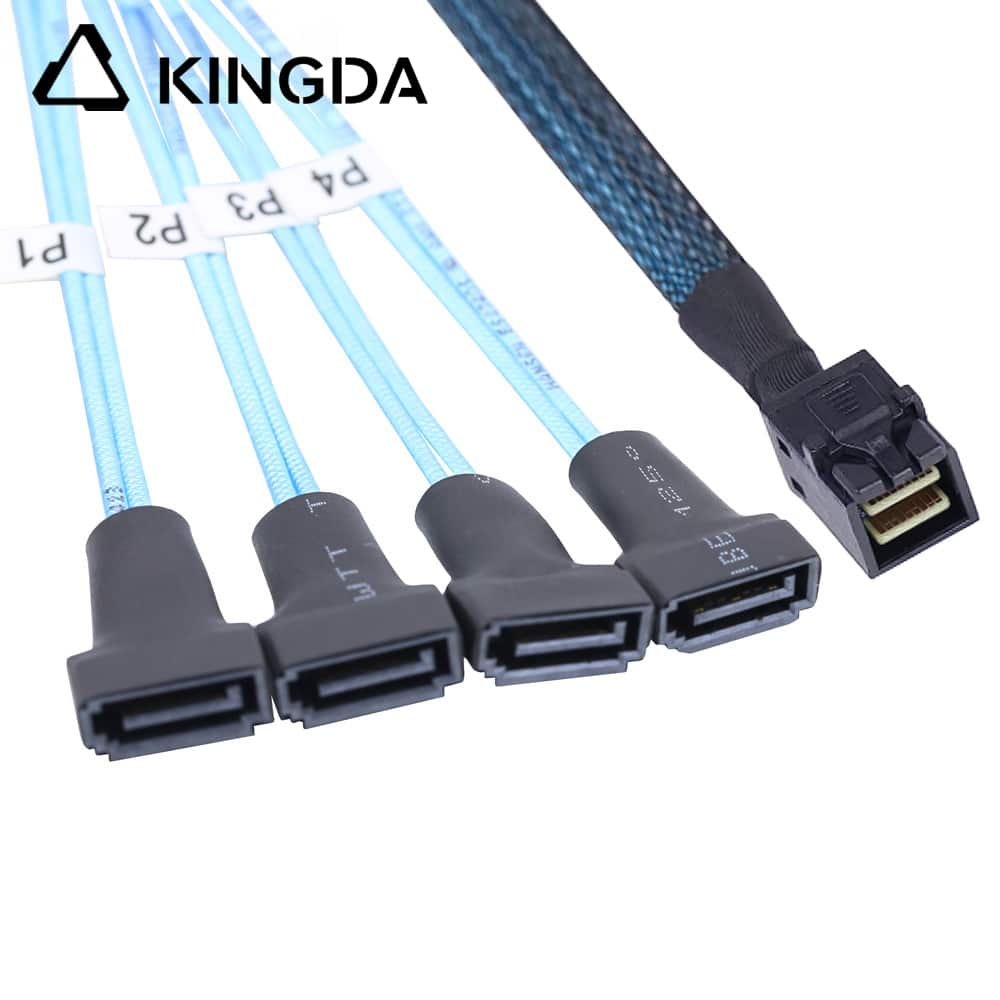

Mini SAS HD SFF-8643 to 4X SATA 7P male High Speed Server Internal Connection cable
Specifications：
- MINI SAS HD SFF-8643to 4X SATA 7p male cable
- Gold plated connectors
- Conductor: TC/BC (bare copper),
- Gauge: 28/30AWG
- Jacket: Nylon or Tube
- Length: 0.5m/ 1m or others. (optional)
- All materials with Roshcomplaint
Warranty Information
Part number JD-B009
Warranty 1 Year
Hardware
Gender： MINI SAS HD SFF-8643 to SFF 8482
SATA Cable Jacket Type HDPE/PP
Cable Shield Type Al foil
Connector Plating Gold plated
Connector(s)
Connector A HD SSF 8643
Connector B SATA 7P male
Physical Characteristics
Cable Length 0.5M /1M
Color Black
Connector Style Straight
Product Weight
Wire Gauge 30 AWG
Wire Diameter
Packaging Information
Package Quantity 1Shipping (Package)
Weight
Maximum bandwidth
MINI SAS HD SFF-8643 to 4X SATA 7p male cable
Gold PlatedColor Blac| Electrical | |
| Quality Control system | Operation according to regulation & rules in ISO9001 |
| Voltage | DC300V |
| Insulation Resistance | 10M min |
| Contact Resistance | 3 ohm max |
| Working Temperature | -25C—80C |
| Data transfer rate |
Applications:
The Mini SAS cables are widely used in HDTV, Computer, ServerInterface
This connection cable supports the SAS (Serial Attached SCSI) standard, especially SAS 2.1 and higher versions (such as SAS 3.0), capable of providing a transmission rate of up to 12Gbps per channel, ensuring the efficiency and stability of data transmission.Detail
The internal wires are usually made of high-quality copper, which has good electrical and thermal conductivity to ensure stable and efficient data transmission. The exterior is wrapped with an insulating material, usually polyvinyl chloride (PVC) or other materials with good insulating properties, which protects the internal wires from the external environment and also prevents short circuits and other problems between the cables.Utral durability and shielding performance
The outside is wrapped with high-quality insulating material to protect the internal wires from the external environment, such as to prevent wear and tear, moisture, etc.. Some high-quality products may also come with a shielding layer, such as metal woven mesh shielding or aluminium foil shielding, which can reduce the impact of external electromagnetic interference on data transmission and improve the purity and stability of the signal.Why Choose Our Customization Service?
Tailored to Your Application
We offer a wide range of customization options including cable length (from 0.2 m to over 10 m), wire gauge (28 AWG/32 AWG), jacket material (nylon, PVC, TPE), color, and labeling. This ensures the cable perfectly fits your hardware setup, installation space, and branding needs.
Flexible Connector Configuration
Beyond standard SFF-8643 and 4× SFF-8482 interfaces, we can adjust connector types and layouts — such as angled or straight plugs, power connector positioning, or hybrid outputs compatible with SAS and SATA — to guarantee seamless integration with your servers, HBAs, and backplanes.
Guaranteed Quality & Performance
All customized solutions maintain our high standards with gold-plated contacts and bare copper conductors, RoHS compliance, and support for up to 12 Gbps transfer rates. You can rely on excellent signal integrity, durability, and EMI resistance.
Fast Response & Scalable Orders
From technical evaluation to sample approval and mass production, we provide an efficient process. Small-batch prototyping and flexible large-volume orders are available to match your project timeline and production needs.
Custom Design Processing
Requirement Collection
Share your application details, including server type, interface specifications, cable length, and special requests.
Engineering Evaluation
Our R&D team analyzes your requirements and provides a tailored design proposal with technical drawings and material options.
Sample Development
Rapid prototyping and sample production are carried out for performance testing and verification.
Customer Approval
You review and approve the sample to confirm functionality, compatibility, and quality.
Mass Production
Once approved, we proceed with full-scale manufacturing under strict quality control standards.
Quality Inspection & Delivery
Each batch undergoes comprehensive testing before packaging and shipment to ensure reliability and consistency.
Service Highlights
| Advantage Category | Our Strengths |
|---|---|
| Customization Flexibility | Cable length, connector types, appearance, and materials can all be tailored to your needs. |
| Performance & Quality | Supports up to 12 Gbps; gold-plated contacts and bare copper conductors ensure high speed and stability. |
| Service Efficiency | Fast response for evaluation and sample approval; supports small-batch trial production. |
| Professional Engineering Support | Dedicated technical expertise and application-specific recommendations ensure seamless project integration. |
One-sentence summary:
When facing challenges such as interface compatibility, cable length, or space constraints in server storage, storage array expansion, or high-density backplane deployment, Kingda-Cables’ customization service delivers precise solutions with high performance, reliability, and deployment efficiency.
