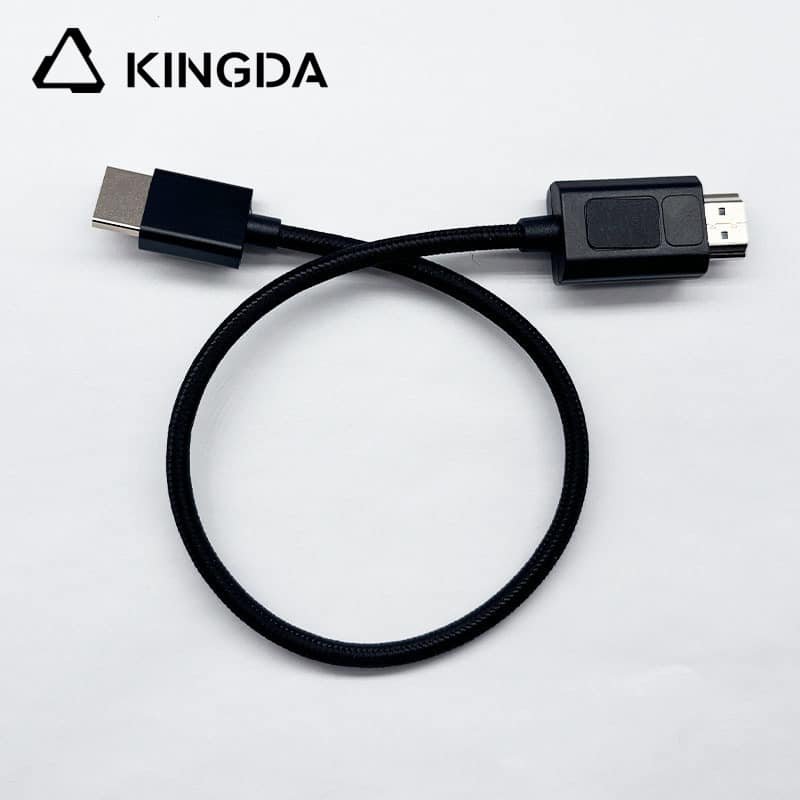

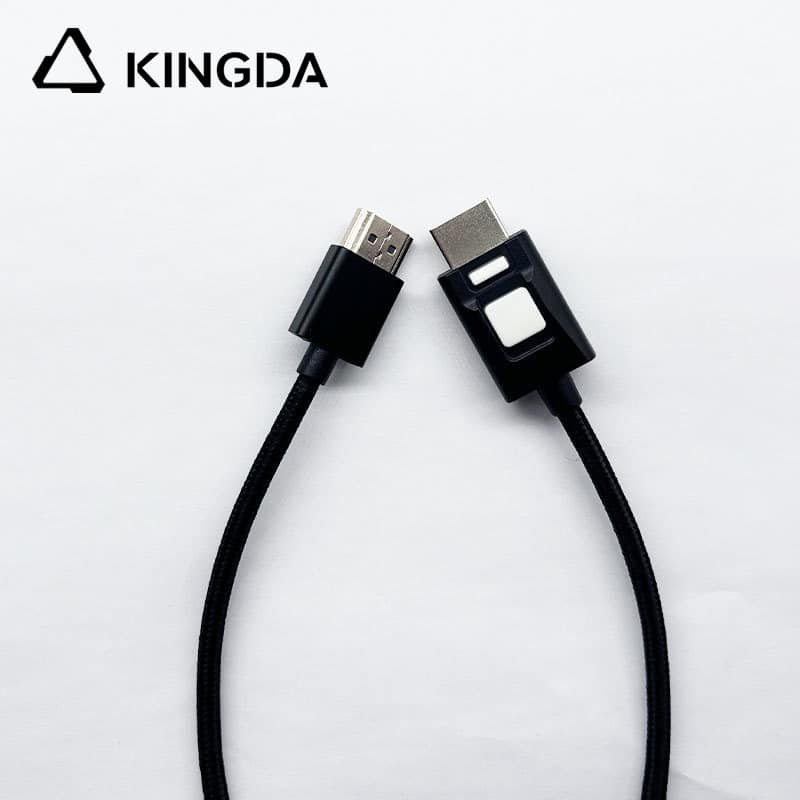

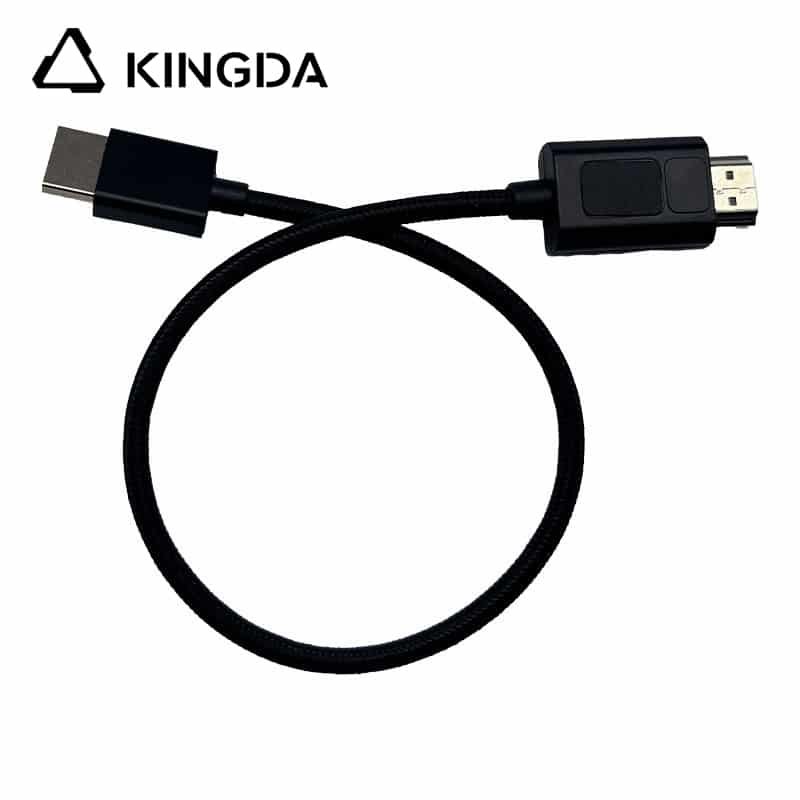

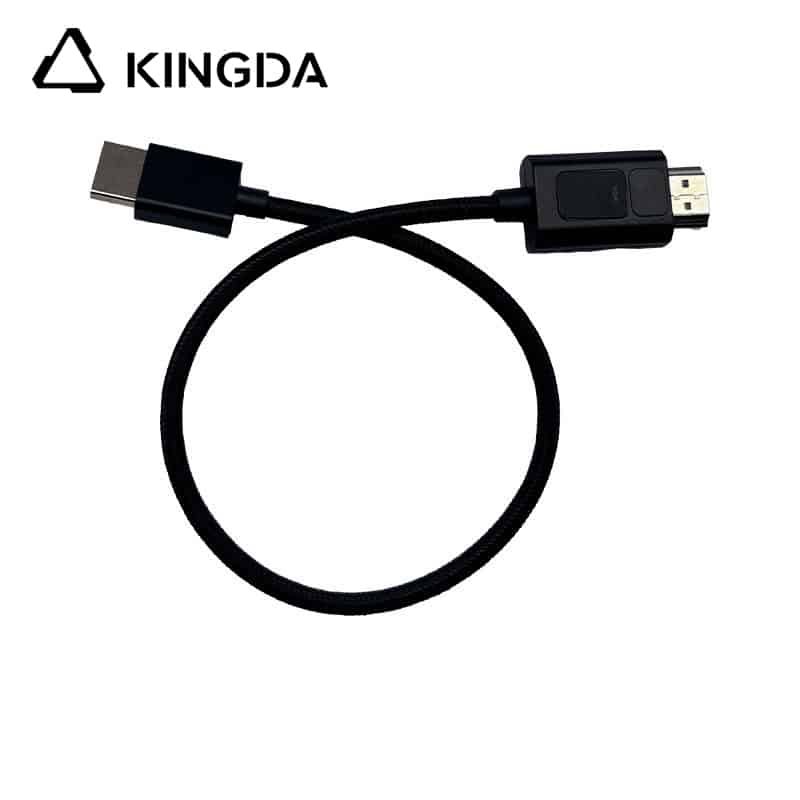

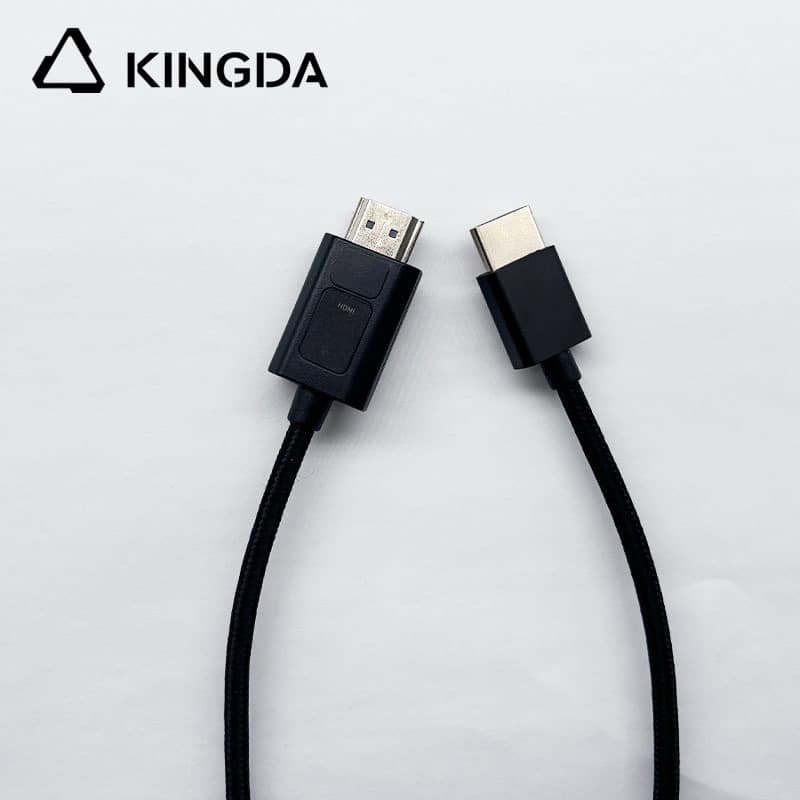

8K 60Hz clip HDMI A male to HDMI with lock cable HDMI with clip to HDMI with bulk high speed HDMI 2.1 male to male cable
Specifications：
- Gold plated connectors
- Conductor: BC (bare copper),
- Gauge: 34AWG
- Length: 0.5/1m / 2m or others. (optional)
- Support 7680*4320,4096×2160, 3840×2160, 2560×1600, 2560×1440, 1920×1200, 1080p and etc.
- 8K@60hz,4k@120hz,Digital transfers at rates up to 48Gbps
- All materials with Roshcomplaint
Warranty Information
Part number JD-HA07
Warranty 1 Year
Hardware
Gender A Male – A Male with clip
Cable Jacket Type PVC
Cable Shield Type Al _MG
Connector Plating Gold
Connector(s)
Connector A 1 – HDMI (19 pin) Male with lock
Connector B 1 – HDMI (19 pin ) Male
Physical CharacteristicsCable
Length 0.5M/1M /2M
Color Black or optional
Connector Style Metal case type (AL Copper)
Product Weight
Wire Gauge 32AWG
Wire Diameter 5.0millimeter
Packaging Information
Package Quantity 1Shipping (Package)
Weight
Maximum Digital Resolutions 8K@60hz,4k@120hz
Ultra High Speed SUPPER SPRING HDMI cable supports 8K@60HZ,4K@120HZ
HDMI Male to HDMI Male cableMetal case type24K Gold PlatedColor Optional| Electrical | |
| Quality Control system | Operation according to regulation & rules in ISO9001 |
| Voltage | DC300V |
| Insulation Resistance | 2M min |
| Contact Resistance | 5 ohm max |
| Working Temperature | -25C—80C |
| Data transfer rate | 48 Gbps Max |
Applications:
The Ultra Supper High speed HDMI cable widely used in computer,Multimedia, Monitor, DVD Player, Projector, HDTV, Car, Camera, etc…Ultra high transmission performance:
Cable support 8K@60hz,4k@120hz. Digital transfers at rates up to 48Gbps The snap-lock mechanism builds a secure barrier for signal transmission. The lock mechanism is one of the core advantages of this type of cable. It forms the first solid defense line through the mechanical interlocking design between the cable interface and the HDMI port of the device. When the cable is inserted into the device, the locking device will automatically or manually trigger, causing the plug to tightly fit with the interface, capable of withstanding at least 5 kilograms of tension without loosening. This feature is particularly important in home theater systems, as it can prevent signal interruption caused by accidental touches by pets or movements of furniture, ensuring the continuity of the viewing or gaming process. The clip design further enhances the stability of the connection. Unlike the smooth interface of traditional cables, the HDMI plug with a clip structure has elastic clips on both sides. When inserted, it will precisely fit into the groove of the device interface, achieving a “secondary fixation”. This design not only improves the tactile feedback during insertion and removal, but also ensures stable connection in vibrating environments (such as car entertainment systems, industrial control cabinets), effectively reducing contact failure caused by the vibration of the equipment operation. A perfect balance between convenient operation and durability.Why Choose Our Customization Service?
Tailored to Your Application
We offer a wide range of customization options including cable length (from 0.2 m to over 10 m), wire gauge (28 AWG/32 AWG), jacket material (nylon, PVC, TPE), color, and labeling. This ensures the cable perfectly fits your hardware setup, installation space, and branding needs.
Flexible Connector Configuration
Beyond standard SFF-8643 and 4× SFF-8482 interfaces, we can adjust connector types and layouts — such as angled or straight plugs, power connector positioning, or hybrid outputs compatible with SAS and SATA — to guarantee seamless integration with your servers, HBAs, and backplanes.
Guaranteed Quality & Performance
All customized solutions maintain our high standards with gold-plated contacts and bare copper conductors, RoHS compliance, and support for up to 12 Gbps transfer rates. You can rely on excellent signal integrity, durability, and EMI resistance.
Fast Response & Scalable Orders
From technical evaluation to sample approval and mass production, we provide an efficient process. Small-batch prototyping and flexible large-volume orders are available to match your project timeline and production needs.
Custom Design Processing
Requirement Collection
Share your application details, including server type, interface specifications, cable length, and special requests.
Engineering Evaluation
Our R&D team analyzes your requirements and provides a tailored design proposal with technical drawings and material options.
Sample Development
Rapid prototyping and sample production are carried out for performance testing and verification.
Customer Approval
You review and approve the sample to confirm functionality, compatibility, and quality.
Mass Production
Once approved, we proceed with full-scale manufacturing under strict quality control standards.
Quality Inspection & Delivery
Each batch undergoes comprehensive testing before packaging and shipment to ensure reliability and consistency.
Service Highlights
| Advantage Category | Our Strengths |
|---|---|
| Customization Flexibility | Cable length, connector types, appearance, and materials can all be tailored to your needs. |
| Performance & Quality | Supports up to 12 Gbps; gold-plated contacts and bare copper conductors ensure high speed and stability. |
| Service Efficiency | Fast response for evaluation and sample approval; supports small-batch trial production. |
| Professional Engineering Support | Dedicated technical expertise and application-specific recommendations ensure seamless project integration. |
One-sentence summary:
When facing challenges such as interface compatibility, cable length, or space constraints in server storage, storage array expansion, or high-density backplane deployment, Kingda-Cables’ customization service delivers precise solutions with high performance, reliability, and deployment efficiency.
