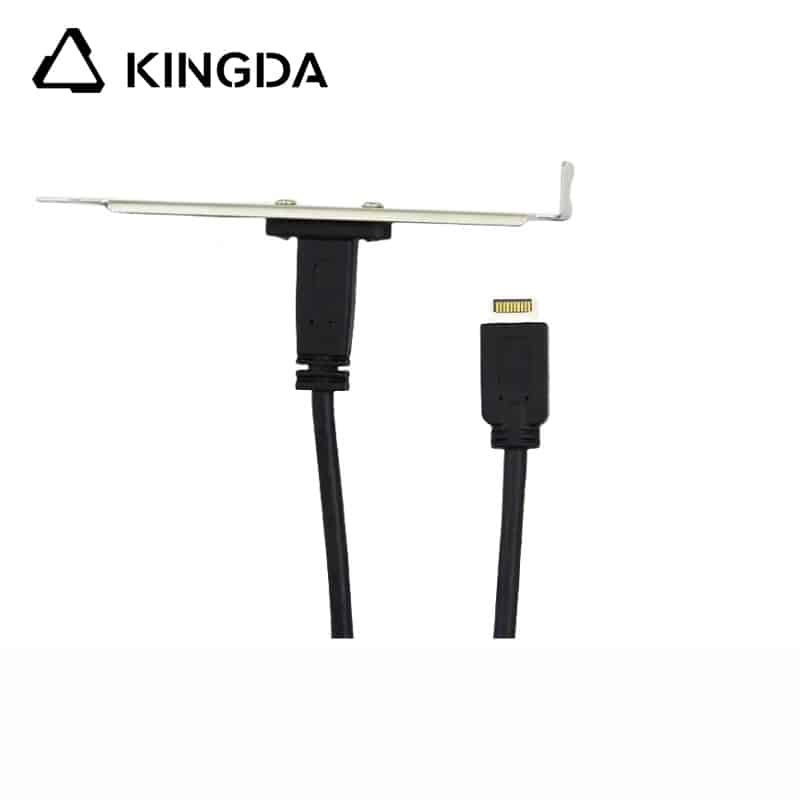

20Gbps USB 3.2 Gen 2 Key A Type E Male to USB Type C Female extension cable with front panel Mount Motherboard Header
Specifications：
- USB 3.2 Key A type E panel mount cable
- 3A Fast Charging, ensure connection and consistent performance
- Maximum Digitaltransfers at rates20Gbps
- All materials with Roshcomplaint
Warranty Information
Part number JD-CP01
Warranty 1 Year
Hardware
Gender USB3.2 Female to USB Key A type E
Cable Jacket Type PVC,
Cable Conductor Tinned Copper
Connector Material Nickel plated
Connector(s)

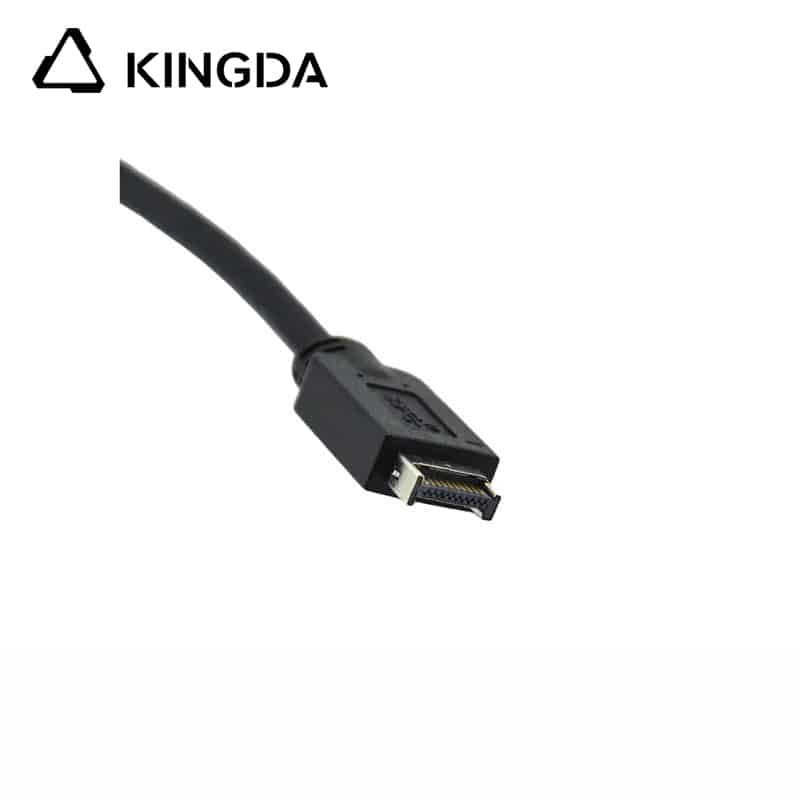

Connector A Key A type E Male
Connector B USB3.1 C Female
Physical CharacteristicsCable
Length 0.5M
Color Black
Connector Style Straight
Product Weight
Wire Diameter 4.8 millimeter
Packaging InformationPackage Quantity 1Shipping (Package)
Weight
Maximum Digital transfers at rates 20Gbps

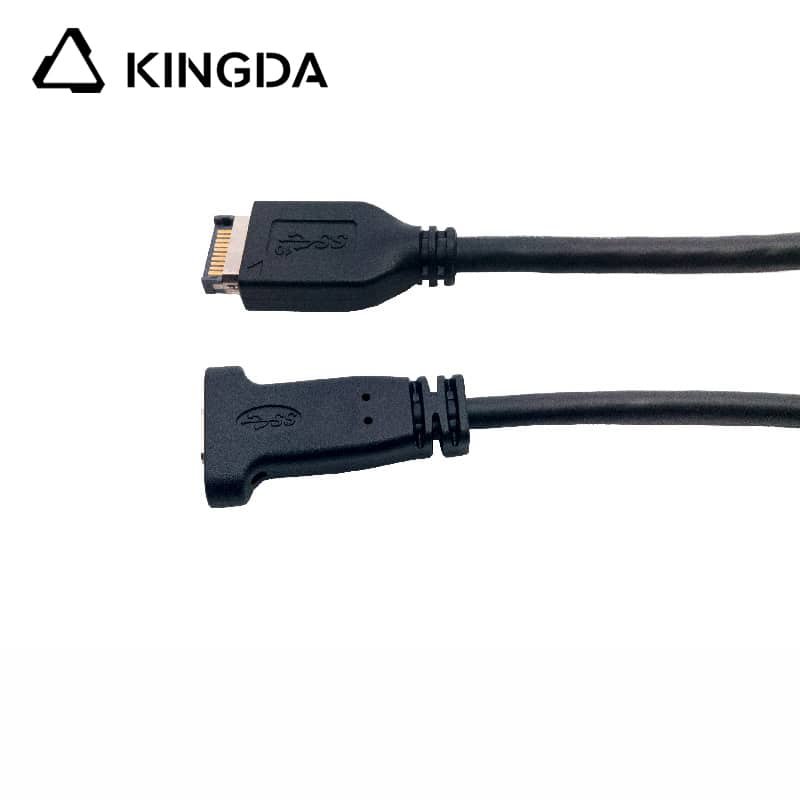

USB3.2 Female to Key A type E cable, 20Gbps
| Electrical | |
| Quality Control system | Operation according to regulation & rules in ISO9001 |
| Voltage | DC300V |
| Insulation Resistance | 2M min |
| Contact Resistance | 5 ohm max |
| Working Temperature | -25C—80C |
| Data transfer rate | 4K@60HZ |
Applications:
The Ultra Supper High speed USB C cable widely used inCamera, COMPUTER, Mobile Phone, MP3 / MP4 PlayerInterface
The usb3.1 type-E interface of the main board is converted into type-C type bus port, which can fix the PCI bit of the chassis,which is convenient for the type-C interface equipment to connect directly and realize data transmission. For motherboards with type-E female portDetail

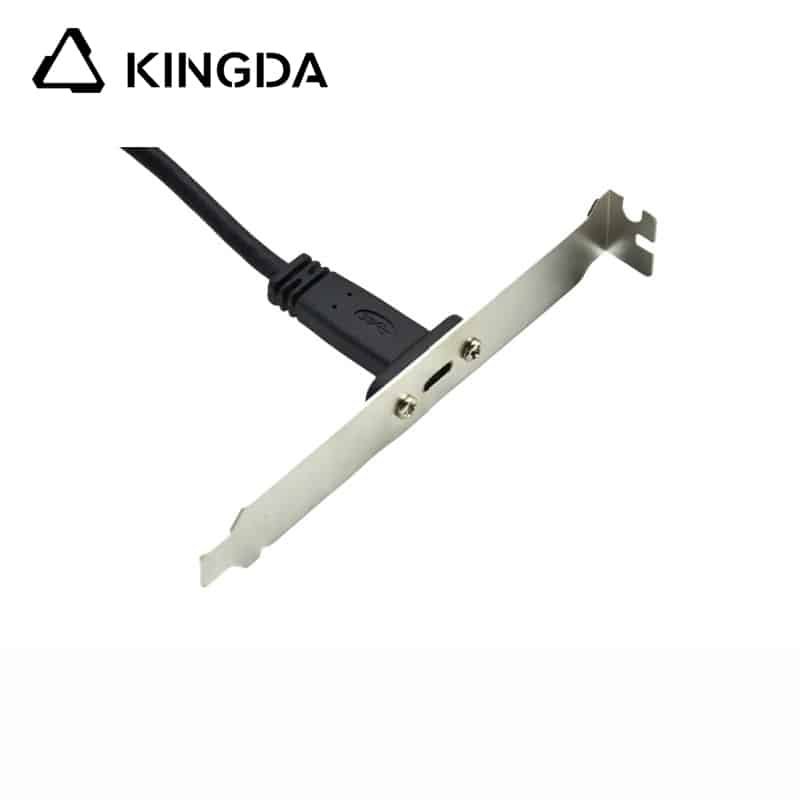

Type-C with nut design, convenient to fix the PC baffle behind the chassis, compatible design, type-E ports are availableUtral durability and shielding performance
The outside is wrapped with high-quality insulating material to protect the internal wires from the external environment, such as to prevent wear and tear, moisture, etc.. Some high-quality products may also come with a shielding layer, such as metal woven mesh shielding or aluminium foil shielding, which can reduce the impact of external electromagnetic interference on data transmission and improve the purity and stability of the signal.Why Choose Our Customization Service?

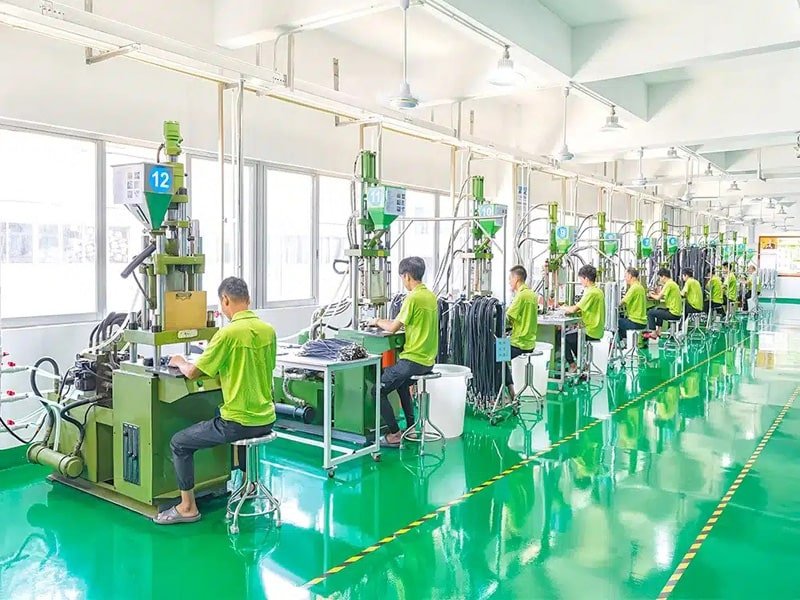

Tailored to Your Application
We offer a wide range of customization options including cable length (from 0.2 m to over 10 m), wire gauge (28 AWG/32 AWG), jacket material (nylon, PVC, TPE), color, and labeling. This ensures the cable perfectly fits your hardware setup, installation space, and branding needs.
Flexible Connector Configuration
Beyond standard SFF-8643 and 4× SFF-8482 interfaces, we can adjust connector types and layouts — such as angled or straight plugs, power connector positioning, or hybrid outputs compatible with SAS and SATA — to guarantee seamless integration with your servers, HBAs, and backplanes.

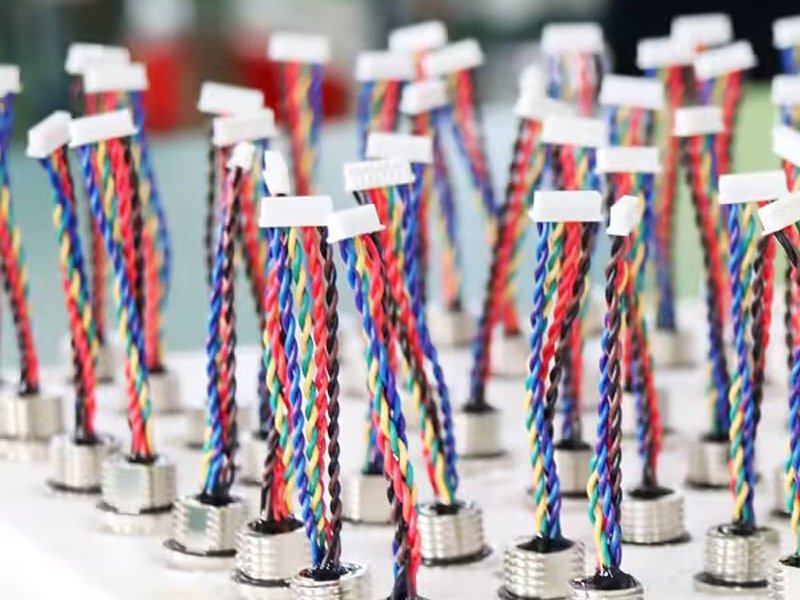

Guaranteed Quality & Performance
All customized solutions maintain our high standards with gold-plated contacts and bare copper conductors, RoHS compliance, and support for up to 12 Gbps transfer rates. You can rely on excellent signal integrity, durability, and EMI resistance.
Fast Response & Scalable Orders
From technical evaluation to sample approval and mass production, we provide an efficient process. Small-batch prototyping and flexible large-volume orders are available to match your project timeline and production needs.
Custom Design Processing
Requirement Collection
Share your application details, including server type, interface specifications, cable length, and special requests.
Engineering Evaluation
Our R&D team analyzes your requirements and provides a tailored design proposal with technical drawings and material options.
Sample Development
Rapid prototyping and sample production are carried out for performance testing and verification.
Customer Approval
You review and approve the sample to confirm functionality, compatibility, and quality.
Mass Production
Once approved, we proceed with full-scale manufacturing under strict quality control standards.
Quality Inspection & Delivery
Each batch undergoes comprehensive testing before packaging and shipment to ensure reliability and consistency.
Service Highlights
| Advantage Category | Our Strengths |
|---|---|
| Customization Flexibility | Cable length, connector types, appearance, and materials can all be tailored to your needs. |
| Performance & Quality | Supports up to 12 Gbps; gold-plated contacts and bare copper conductors ensure high speed and stability. |
| Service Efficiency | Fast response for evaluation and sample approval; supports small-batch trial production. |
| Professional Engineering Support | Dedicated technical expertise and application-specific recommendations ensure seamless project integration. |
One-sentence summary:
When facing challenges such as interface compatibility, cable length, or space constraints in server storage, storage array expansion, or high-density backplane deployment, Kingda-Cables’ customization service delivers precise solutions with high performance, reliability, and deployment efficiency.
