Introduction
USB cables exist in the current digital era everywhere, including in mobile devices . Whether it is putting power into your smartphone or transferring data to and between different machines, these flexible connectors have become a stapled part of our lives universal serial bus.
However, with the numerous varieties in place, it gets blinded to select the type of usb connectors that suits best. Did you ever pick up a cable and find it does not work on your device? Or in the case that some cables charge faster than others, why is that?
Why Understanding USB Connectors Matters
Learning about different types of usb connector types is not only a portion of knowledge, but it is also about the simplification of your life. The correct cable may spell out less waiting time on charging devices, file sharing and is also less agitating when one is hunting through the jungle of cables.
New standards are frequently introduced and it is on your best interest to learn of these usb specification standards to purchase the correct usb devices and connectors as well as to avoid compatibility problems related to applicable standards usb micro.
1. Understanding USB Cable Basics
What is a USB Cable?
USB, which stands for universal serial bus, connects your products and sources of power or other devices usb b cables. In essence, usb cable types support two default functions: power transfer and data transfer.
Consider USB cables as simple digital roads with relays that transmit information in one direction and the other and also the provision of electrical energy that directly charges battery or runs portable devices usb pd.
The Role of USB in Modern Technology
USB technology has transformed the way we interconnects our devices USB replaced previous connections, whereby different devices had different standard usb connectors, cables and connectors packed in jungles of incompatible models usb extension cables.
The modern devices USB standards offer a more streamlined model, however, various connector types remain to suit various purposes and device shapes and sizes usb c port.
Evolution of USB Standards
USB technology is history spanning more than 20 years of progress usb c receptacle.
USB 1.0 to 2.0: Foundation Years
USB 1.0 defined universal connectivity at 1.5 Mbps as a keyboard/mouse product, in particular. The USB 1.1 was a better version in terms of improved reliability and uptake. USB 2.0 took a huge leap with 480 Mbps transmission and USB can now be used with storage devices and digital cameras external storage devices.
The introduction of USB 2.0 went along with the emergence of portable storage devices that helped USB become the most popular connectivity standard standard usb c cable.
USB 3.0 to 3.2: SuperSpeed Era
USB 3.0 added support of SuperSpeed, 5 Gbps transfer rates- a 10x increase over USB 2.0. USB 3.1 nearly doubled the speed, to 10 Gbps and added USB Power Delivery, along with options like usb type c lowing higher power use mobile phones.
USB 3.2 improved on these with a multi-lane architecture up to 20 Gbps, along with backward compatibility usb type c connector.
USB4: The Latest Evolution
USB4 is the latest technology with the maximum speed of 40 Gbps and the increased compatibility with Thunderbolt 3 usb mini b. This specification amalgamates diverse connection requirements into one specification
USB B4 is more power delivery and display video connection-oriented and is ideally suited to professional and high-performance applications.
2. USB Type-A: The Classic Connector
Physical Characteristics
USB Type-A connectors are rectangular with a flat connective face and have not changed much since the advent of USB. The connector is directional but only in one way–whereas the reverse orientation can also be used, it only works with one orientation usb adapters.
Type-A connectors are large and sturdily built, so they are suitable on applications where frequent connection/disconnection is desirable and durability is a concern cell phones.
Common Applications and Devices
The Type-A connectors will be mainly found on the host equipment (computers/laptops/gaming console/wall chargers) and also on any peripheral device standard usb port. These are normally the USB connection ends inserted to a source.
Type-A ports are found in desktop computers, mobile devices USB hubs, car chargers and power adapters. The tough build of this connector is ideal to fit in stationary or semi-permanent usage usb charging.
Advantages and Limitations
USB Type-A is the chief benefit of its universal recognition. Almost all computers which have been made in the last 20 years have Type-A ports.
Type-A is however too large to fit compact devices and its downfall in low-light conditions is its single-orientation design usb micro b.
3. USB Type-B: The Printer’s Choice
Design and Purpose of different usb type connectors.

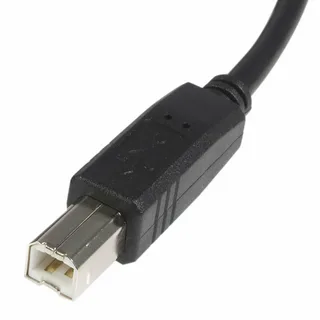

USB Type-B connector-Square in shape with slightly beveled edges. This architecture will not allow the accidental insertion into Type-A ports and it will identify devices correctly.
The plug is purpose-built to support peripheral products that need more permanent connections and which might not need to be removed often.
Where You’ll Find Type-B
Type-B connectors are common on larger peripheral devices, such as printers and scanners and external hard drives. The corresponding devices are generally left connected over a very long time right usb cable.
Type-B connectors are common with professional audio equipment, some networking equipment and also industrial equipment because of the strong connection qualities.
Why Type-B Exists
The shape of the Type-B connectors is different to fulfill a valid purpose: users cannot insert the connector between host devices and cause damage.
This design consideration was influenced by the early USB design philosophy with respect to clarity of device hierarchy and connection rules.
4. Mini USB: Compact Legacy
Historical Context

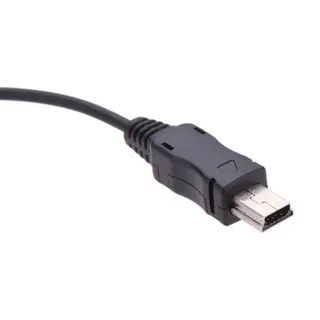

Mini USB connectors The mini USB connector (also referred to as USB Mini or mini USB) was developed to provide USB connectivity to smaller devices. Mini USB was previously used by devices such as digital cameras, MP3 players and early smartphones before being brought to prominence by smartphones.
The standard was trendy throughout the early 2000s and was the first significant effort to standardize USB port-sized means of connectivity.
Physical Design
Ultra mini USB connectors are considerably smaller in size as compared to their Type-A and Type-B counterparts and they are quite strong. The connector is trapezoidal in design, comfortably orienting to the connector to an upright position.
In spite of being small in size, the mini USB connectors are reliable and can serve as charging and data transfer junctions.
Current Usage and Durability
Mini USB connectors are used on some devices; they are mostly used in low-end portable devices. Mini USB is still used with some gaming controllers, some older GPS models and special equipment.
Mini USB connectors, were developed with the aim of making them durable with connection mechanisms that were robust. But small size causes them to be easily destroyed by frequent in- and out- insertions.
5. Micro USB: The Smartphone Standard usb connectors
Rise to Prominence
The standardisation move towards a single common standard had a lot of influence on micro USB becoming the prevalent connector of smartphones throughout the 2010s. The European Union pressure on common charger propelled the usage of micro USB as a common connector.
This ubiquitous growth led to the development of a variety of compatible accessories and chargers to be used by consumers across a variety of devices brands.
Technical Specifications
The micro USB ports are so small that they are smaller than the mini USB but have the same functionality. This connector is flat with a slight taper that makes it easy to be inserted properly.
The device is compatible with USB 2.0 data transmission speed and offers laudable power supply to charge the majority of smartphone and tablets.
Device Categories and Limitations
Micro USB ports are also found in tablets, e-readers, Bluetooth speakers, and fitness trackers, and a wide range of portable electronic devices.
Although it was a success, micro USB has several shortcomings that caused its subsequent replacement. The connector is USB 2.0-only, has modest power delivery, and allows non-reversible insertion. Also, the micro USB connectors wear out with time.
6. USB Type-C: The Future is Here
Revolutionary Design
USB Type-C is a radical re-conceptualisation of USB connections. The oval, symmetrical shape permits one to insert the connector with any orientation, no longer an irritation with older USB connectors.
Its compact size can compete with micro USB, and offer much greater capabilities and forward compatibility with developing technologies.
Technical Advantages
USB Type-C supports all versions of USB, to USB4 depending on implementation. The connector supports data transmission up to 40 Gbps and power dispensation of 100 watts.
Further, Type-C supports alternative modes of video output, so 4K displays may be driven over the same connector used to charge and transfer data.
Universal Adoption Trends
Type-C, also known as usb c, is gaining popularity among major technology companies which are standardizing the product line despite laptops. A shift to USB-C by Apple with iPads and MacBooks is a sign that the industry is moving towards the direction of adopting USB-C.
USB-C has been accepted by Android manufacturers as a flagship connector interface that is quickly being used on laptops, tablets and even desktop computers.
7. USB 2.0: The Reliable Workhorse
Performance Specifications
USB 2.0 standards offer up to 480 Mbps integrated which is about 60 MB/s in real life scenarios. This would appear to be slow by modern standards, but is still sufficient in a wide variety of applications.
As an example, an average 4 GB movie file would transfer in about 67 seconds when USB 2.0 is used at its best.
Power Delivery and Applications
USB 2.0 allows a maximum of 2.5 watts (5V at 0.5A) of power to be delivered (enough to sustain basic device charging and powering low-power peripherals such as mice and keyboards).
USB 2.0 is still very much suited to use in keyboards, mice, simple storage devices, and simple charging rationales. Many of the existing peripherals do not need the faster speeds and a cheaper USB 2.0 implementation can be applied.
8. USB 3.0 and 3.1: SuperSpeed Performance
Speed Improvements
USB 3.0 added SuperSpeed operation with a data transfer rate up to 5 Gbps over 10 times faster than USB 2.0. USB 3.1 doubled that to 10 Gbps again bringing it in the competitive pace with other high-speed interfaces.
These performance enhancements have made USB a realistic connectivity solution to professional and high-performance markets.
Enhanced Power Delivery
USB 3.0 and 3.1 raise power delivery specifications, with 3.1 able to deliver 100 watts using the USB Power Delivery specification. This enables charging of laptops and higher powered appliances using USB.
In real usage scenarios, USB 3.0/3.1 enables storage devices such as external SSDs to be put into use as a main drive, fast transportation of video files, and fast charging of heavily powered gadgets.
9. USB 3.2 and USB4: Cutting-Edge Standards
USB 3.2 Refinements
USB 3.2 revises the 3.1 specification to achieve a more streamlined system and simplified nomenclature. The standard can support up to 20 Gbps in two lanes while backwards compatible.
Although each lane can only deliver a 5 Gbps bandwidth, USB 3.2(K) is capable of using two lanes in parallel, increasing bandwidth to 10 Gbps. There is also redundancy afforded to this multi lane approach.
USB4: Ultimate Performance
The USB4 specification unifies multiple connectivity standards in a single specification, and supports Thunderbolt 3 compatibility and advanced features that were otherwise only supported by proprietary solutions.
USB4 has the ability to support up to 40 Gbps in data transfer and also has intelligent bandwidth allocation by automatically shifting resources depending on the requirements of connected devices. XDP and display connectivity enhancements enable USB4 to support a greater number of 4K displays over a single interface.
10. Data Transfer Only Cables
Purpose and Design
Purpose: What is the purpose of this code? Why was it programmed? Design: How does it work? What is its design?
Can be exclusively used to transfer information between equipments. The cables lack the power wires, and hence are lighter and could be less costly to produce.
Use Cases and Identification
Data transfer only cables are quite appropriate in connecting devices storage, as well as computers, when such devices have their own power sources. They also can be used as a means of data synchronization between devices that do not need charging.
Data-only cables may be smaller than the more multipurposed cables and are sometimes marked directly as such, as data only or sync only. Some manufacturers color-code such connectors differently to make the differences between these cables.
11. Charging Only Cables universal serial bus
Design Philosophy and Security
Only cables that charge have power delivery as the priority over data transfer These cables contain the requisite power wires, but don away or deactivate the data lines
This design has advantages of potentially leading to cheaper manufacturing, and may also offer security advantages because data could not be accessed during charging. Charging-only cables prevent juice jacking attack: malicious charging station may access the data on a unit.
Performance Considerations
Well-made charging-only cables may provide power more efficiently than multi-purpose ones by using wire gauge optimized primarily to conduct current rather than to transmit data.
Charging-only cables can not be applied in performing firmware updates, file transfers or other data-intensive operations.
12. Data + Charging Cables
Balanced Approach
On full-featured cables, software allows simultaneous video output, high-wattage power delivery and maximum data transfer speed.
Such cables are required to support such advanced functionality as alternate modes of USB-C to DisplayPort or HDMI video outputs.
Wire Configuration and Performance
USB-C cables with full alternative mode support are capable of relaying DisplayPort, or HDMI data. This functionality enables connection of a laptop to an external display and simultaneously deliver power and data.
High speed cables can run up to 100 watts of USB Power Delivery, allowing one to charge laptops, monitors, and other high-power devices using USB connectors.
13. Full-Featured USB-C Cables
Advanced Capabilities
The official USB logo is a certification mark used to identify USB cables and products that have passed the set standards determined by the USB Implementers Forum and are safe and high-performance products. Such certification offers quality and compatibility assurance.
Certified cables go through long-standing tests so that they pass the electrical, mechanical, and safety standards in USB specifications.
Video Output and Power Delivery
Due to some non-certified products carrying the USB logo, some confusion still exists. One tip is to buy cables such as cabelo in the right kind of manufacturers and retailers so as to ensure that they are genuine in the certification and that they do perform.
USB certification involves testing to provide electrical safety, electromagnetic compatibility and mechanical robustness under different conditions of use.
14. USB Logo and Certification
Official Certification Significance
The SS marking means that the connector is SuperSpeed-compatible, that isUSB 3.0 or faster. This marking is used to distinguish cables with faster (and higher) data transmission rates such as 5 Gbps and above.
The SuperSpeed marking and additional markings include SS (USB 3.0 – 5 Gbps), SS+ (USB 3.1 – 10 Gbps), SS10 (USB 3.2 – 10 Gbps) and SS20 (USB 3.2 – 20 Gbps).
Counterfeit Concerns
Blue connectors or accents are used by many manufacturers to denote the capability of SuperSpeed. This is not a universal way of identifying connections but it does give a quick visual identification of high-speed connections.
The SuperSpeed markings are just the minimum requirements that they will be able to provide and then again it relies on the devices which are connected and also the usage scenarios.
15. SuperSpeed Markings
SS Symbol Identification
Cables claimed to support Power Delivery may have printed wattage ratings (such as 60W, or 100W). These markings serve to make sure that there is compatibility with the power requirements of the devices.
Cables used with electricity distribution may have coded markings indicating the maximum volt range they can carry (such as 20V). This is critical information when it comes to laptop charging or other high-powered application.
Color Coding and Performance
Power cables that carry the power can contain more safety standards within the body such as UL or CE. These markings denote that the product accords with electrical safety standards.
Current ratings (in amperes) show the maximum safe current which is to be carried by the cable. Increased current ratings increase the gauge of wires and include connector designs.
16. Power Delivery Symbols
Wattage and Voltage Indicators
The first step to cable selection is to determine the connector types on your devices. Test both the host (computer, charger) and the peripheral (phone, tablet, external drive) device to identify the necessary combinations of connectors.
Use a camera to photograph port connections in case these are needed, since connector types are often not easy to differentiate without comparison.
Safety Certifications
Make sure you have the USB specifications requirements of your devices. A USB 3.1 device used with a USB 2.0 cable does not perform to the full potential of the device, no matter the connector compatibility.
Verify device documentation or specifications in order to ensure what USB versions and functionality are supported.
17. Device Compatibility Assessment
Port Identification
The first step to cable selection is to determine the connector types on your devices. Test both the host (computer, charger) and the peripheral (phone, tablet, external drive) device to identify the necessary combinations of connectors.
Use a camera to photograph port connections in case these are needed, since connector types are often not easy to differentiate without comparison.
Specification Requirements
Make sure you have the USB specifications requirements of your devices. A USB 3.1 device used with a USB 2.0 cable does not perform to the full potential of the device, no matter the connector compatibility.
Verify device documentation or specifications in order to ensure what USB versions and functionality are supported.
18. Purpose-Based Selection
Charging Priority Applications
Focus on power delivery capability, rather than speed of data transfers, when considering applications that require primary charging. Make sure that the cables contain the proper ratings of wattages and are well constructed to deliver quality power.
Be mindful about length of cable being used in charging application, larger length cables can result in a voltage drop that impacts charging time or quality.
Data Transfer Focus
High speed cables fall under cost constraints and are most suitable to data- intensive applications. USB3.1 or USB4 cables save importantly on large files.
Determine whether a simultaneous charging/data transfer connection is needed, which will also dictate what type of cable to use, and possibly device compatibility.
19. Quality and Certification Importance
Safety Considerations
Quality cables contain good safety characteristics which are essential for usb devices, including overcurrent defense, overvoltage guard, and non-burnable material. These characteristics are essential to the avoidance of destruction to linked gadgets and the security of the users.
Certified cabling is tested to ensure safety standards are met across the different operating conditions and a variety of failure modes.
Performance Reliability and Durability
Good cables can deliver great results after a long period of use and in different circumstances. Superior materials and quality construction provide dependable performance over the cable service life.
Look at aspects of construction that influence durability, including strain relief at connectors, materials used in cable jackets and quality of connectors plating.
20. Common Cable Selection Mistakes
Using Incompatible Cables
Inserting incompatible connector can be harmful to the cable and the attachment on the device. Before connecting, always check that connector compatibility, and never force connectors that will not fit together easily.
The intentional and inadvertent use of cables with insufficient power capacity may lead to overheating, compromised performance, or cause safety risks, especially with USB-C cables where power requirement varies dramatically.
Overlooking Cable Specifications
Instead, many users base their undivided attention on connector types but not on power delivery capabilities. This monitoring may occasion slow charging or charging failure altogether.
USB-C connectors do not necessarily offer high-speed data be more cautious. Some USB-C cables are not capable of the USB 3.0 speeds, much less USB 3.1, and performance is restricted as a result.
21. Cable Maintenance Best Practices
Physical Damage Prevention
Using the correct cable handling practice eliminates physical damage that may cause performance and safety issues. Do not have any sharp bends, excessive tension, or inner wire damaging pinches.
Employ cable management device to tie up cables and ensure they are not being grossly tangled or strained.
Connector Care and Storage
Make sure the keep connectors are clean and dry so that there is a well-contacted connection. Through contamination or corrosion, connection intermittency or performance degradation may occur
Optimal cushioning of the cables helps avoid damage and prolonged use. Do not coil too tightly, use extreme temperatures excessively harsh and store/trash cables in a way that has a likely probability of causing damage.
22. Troubleshooting Connection Issues
Diagnosing Connection Problems
Intermittent Connections usually signify the physical problems with connectors or cables. To check it gently wiggle the cable plugged in to see whether there is any loose connection or harmed wire.
Failure to connect entirely can be a sign of damaged cable or incompatibility between specifications or a problem with device drivers. Start with simple cable testing on known working devices so as to pinpoint the source of problem.
Performance Optimization Solutions
Where possible, use cables that have a desired power, rather than minimum power. More wide-ranging specifications may be subject to more reliable operations, and greater future compatibility.
Cables must be separated out of the way of electrical interference sources such as motors or power supplies, which will corrupt data signals.
23. Lightning vs USB-C Comparison
Apple’s Connector Evolution
The Lightning connector that Apple used with iOS devices provided reversible design as well as quality performance more than ten years. One of the benefits that USB-C has had over USB-A, however, is the increased power delivery, as well as universal compatibility, making Apple change to it gradually.
iPhone USB-C shift is a measure by Apple to meet the industry standard but give premium user experience.
Technical Advantages
The benefits of USB-C, over Lightning provisions, are greater data-transmission speed, more power delivery capability, and wider compatibility with devices. USB-C can support up to 100 watts of power delivery compared with lower-wattage amounts offered by Lightning.
The history of theApple charging port is indicative of the surrounding technology industry as a whole in terms of the direction of the move towards standardized connectivity.
24. Future USB Technology Trends
USB4 Version 2.0 Developments
The next version of USB4 (Version 2.0) is expected to support up to 80 Gbps of data transfer, twice as much at present. This enhancement will be able to sustain even higher applications such as 8K video streaming at its uncompressed format.
Improved power delivery capabilities can be further than existing 100-watts to possibly enable more powerful devices such as high-performance laptops.
Wireless Integration and Sustainability
USB Wireless technologies are coming up to offer wireless connectivity on short-range applications but to ensure adherence to USB protocol.
To limit the production of environmental pollution, USB cable manufacturers are also becoming more committed to more sustainable materials and production processes, even when this must be done at the cost of performance.
25. Professional and Industrial Applications
Specialized Requirements
Such cables should be suitable to particular professional settings and use, be certified, more durable, or have special properties that enhance usb connections, such as locking connectors or even extended warranties.
Take into account the environmental factors envisaged such as temperature extremes, vibration, or chemical exposure that can have an impact on the choice of the cable in professional use.
Performance Demands
Mobile gaming, pro-audio, and pro-video features such as external GPU boxes, high-performance storage systems, and multi-display systems demand high-performance and feature-rich USB4 cables that support Thunderbolt.
High-demand applications are worth exceptional cable construction and perhaps even richer prices in the way of increased reliability and functionality.
26. Consumer vs Professional Cable Markets
Market Segmentation
Consumer cables are usually based on cost-efficiency and versatile compatibility, whereas professional cables are designed to serve provision of maximum performance or even survive in harsh environment.
Being familiar with your use case will allow you to understand whether consumer or professional-grade cables are more cost-effective to your particular applications.
Price vs Performance Balance
The highest-priced cable need not be used in every situation–maximize value by matching cable specifications to actual needs. Safety-critical applications, though, should never divert their attention because of cost concerns at the expense of quality.
Enterprise uses of premium cable tend to make the high costs worthwhile by decreasing downtimes and the possibility of system malfunction.
27. Cable Testing and Verification
Performance Testing Methods
Testing cables using known devices and applications aids in an account check of how these cables perform in comparison to the specifications. Use the file transfer the benchmarks and charging time values to assess cable performance.
Professional cable testers can be used to verify electrical specifications, whilst basic functionality testing using actual devices may be more than adequate validation to most users.
Quality Indicators
Appearance can be used to determine quality in aspects such as, connector finishes, strain relief design, and material type of cable jackets. These variables usually go hand in hand with an overall cable quality and lifespan.
A further quality indicator that can apply to the choice of cables is manufacturer reputation, warranty coverage and certification marking.
28. Making the Right Choice
Decision Framework
USB selection should reflect good connector compatibility, performance and quality needs, as well as considerations around budget. Make a priority list of the use cases in which the device will be leveraged and align that list with what devices could be acquired.
Future-proofing with the more advanced cables is worthwhile, but don not overspeccify the application with features it will not utilize.
Investment Strategy
USB-C cables with enhanced performance are a good idea as an investment because any system is migrating to the USB-C standard.
Keep a number of different cable types in inventory to support the range of devices and applications, although new purchases should be of high-specification USB C which could support them.
Conclusion
Learning the types of USB connectors allows you to make informed decisions to live in the current connected world. Its classic USB Type-A is as reliable as ever, and all modern features to allow use with USB4 are included in new connectors.
Care of connector compatibility, data transmission needs, power delivery needs, and upcoming usage is most crucial. Good quality cables which have the necessary certifications experience better results, safety and longer life.
USB-C with USB4 is currently the most future-proof solution with the widest universal compatibility, and older connector types are still relevant to special applications. Good cable maintenance and matching specification are important in maximizing performance and service life.
Frequently Asked Questions
What is the difference between USB Type-A and Type-C?
USB Type-A is made up of a flat rectangular shape design that insists on being oriented before being inserted and is mainly used on the host devices. USB Type-C is reversible, oval-shaped and supports high-speed data transfer, 100 watts of power, and the video output that is supported in a single connection.
Can I use any USB cable for charging my device?
USB cable does not fit all the devices to charge. The most important factors to take into consideration involve the compatibility position of the connectors, power delivery capacity and cables. Connection of cables having inadequate power rating may lead to slow charge or even safety risks.
How can I identify a USB cable’s data transfer speed?
You should see markings of USB version or SuperSpeed (SS, SS+, SS10, SS20). The blue-colored connectors are used to designate USB 3.0 or superior. Confirm markings with a manufacturer specification or a known device.
