Mini SAS SFF-8087 vs HD Mini SAS SFF-8643: What’s the Difference?

Introduction

This boils down to the following: Use mini SAS SFF-8087, the internal connector of choice, when it comes to legacy systems that operate at a speed of 6Gbps; meanwhile, the HD mini SAS SFF-8643 is the high-density, high-speed solution with 12Gbps in a small server rack. I have also spec’d both in data centers over the years and the variance is due to speed, space, and future-proofing, SFF-8087 is continuing to keep older RAID arrays running cheaply, but SFF-8643 is the one that is needed in todays bandwidth-greedy setups.

Here you will find a clear description of their main distinctions, compatibility peculiarities, and real-world use as well as the hints on how to select the appropriate one to use in your storage architecture. Upgrading an existing JBOD enclosure or creating a new PCIe storage array, we will make sure you do not spend a lot of money on the discrepancies.

Quick Overview — What Are SAS Connectors?

SAS, or Serial Attached SCSI is the workhorse with high-speed storage interconnects, connecting RAID controllers with drives in servers and data centers in a very reliable fashion. SAS cables are not as simple as SATA, but they can service more than one device per cable, which is the ideal choice when the performance must be of enterprise quality.

Fundamentally, SAS cable connector such as SFF-8087 and SFF-8643 are high speed SAS cable connectors that guarantee that the SAS cable interfaces are able to transfer data without errors even in noise-prone environment. Only a high-quality SAS cable assembly is more than wire, a tight control of shielding and impedance, and it is this extremely tight control that maintains signal purity between controller and backplane. As with my experience of troubleshooting enterprise level HPE servers, 90 percent of random drive drops could be resolved by swapping a failed connector. Summary: The correct SAS cable connectors can break or make your storage uptime.

Mini SAS SFF-8087 — The Classic Internal Connector

We will begin with the old-time: Mini SAS SFF-8087, the internal workhorse of SAS-2 generation systems. Introduced circa 2009, it is based on 4 lane, 6Gbps, (24Gbps overall), in a 36 pin design, with a dependable latch-lock system. It is physically approximately the size of a USB-B connector, but larger, with enough force to plug directly into the motherboards or backplanes of servers.

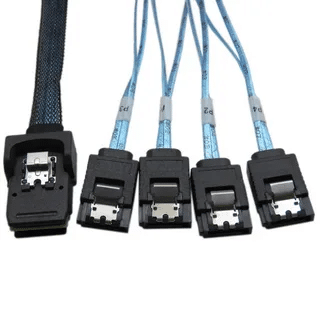

I used thousands of such SFF-8087 inside connectors in older Dell PowerEdge racks and LSI RAID controllers- it will stand that JBOD expansion or low-end NAS construction. The mini SAS cable design has a standard shielding and this can cope with EMI in a controlled environment and can be used with breakout cables to be backward compatible with SATA drives. It remains the affordable option when the bandwidth required is 6Gbps SAS cable like a video editing workstation or a small-business server. It just will not scale to 4K streams of video or AI workloads – at that point it becomes time-tested.

HD Mini SAS SFF-8643 — The High-Density Successor

Rewind to 2013 and introduce HD Mini SAS SGF-8643: the SAS-3 upgrade half of the size and twice the speed. This 36 pin monster is able to crank 12Gbps per lane (48Gbps total x4) courtesy of smaller pin spacing and improved materials. The HD turns out to be High Density and, as you may have guessed, HD is also High Performance: thinner PCIe slot layout, improved EMI shielding that scoffs off crosstalk in dense blade servers.

Practically, I have dealt with SFF-8643 connectors in large data centers of both Cisco UCS and Supermicro, where space is at a premium. The HD mini SAS cable bends easier to fit, and the 12Gbps SAS cable assembly can fit NVMe storage based on PCIe without even blinking. It is not only faster, it is smarter, with inbuilt lane negotiation of mixed SAS/SATA systems. This is your connector, no compromises, in case you are wiring a modern HBA such as the Broadcom 9500 series.

SFF-8087 vs SFF-8643 — Key Technical Differences

To make it crystal clear, here’s a side-by-side SFF-8087 vs SFF-8643 comparison table based on SFF Committee specs and my field testing:

Quick Insights:  The difference between mini SAS and HD mini SAS is noticeable in density SFF-8643 consumes 30 percent less rack space, according to my measurements of 42U cabinets. The additional shielding reduces crosstalk by half in high-EMI areas, and SAS-3 vs SAS-2 compatibility implies that SFF-8643 adapters are compatible across the old hardware. In comparison shopping of SFF-8087 vs SFF-8643, save money on the classic, however, at speeds over 7200RPM value the speed.

Compatibility and Transition in Modern Systems

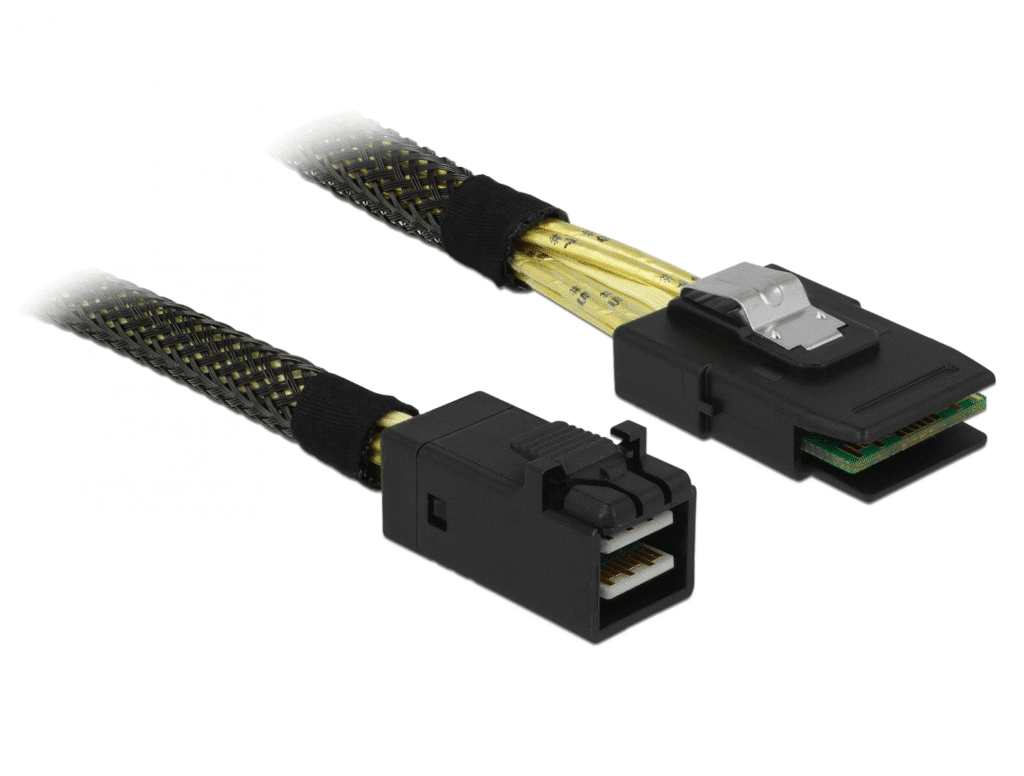

Things become interesting at compatibility – and I have saved clients thousands in upgrade costs. HD Mini SAS SFF-8643 can be used interchangeably with SAS-2 using simple adapters (SFF-8643 to SFF-8087), therefore, you do not need a complete rip-and-replace to mix generations. SATA drives? Both would work, but the auto-negotiation of SFF-8643 would manage it easier.

Industry shift? Storage vendors such as Dell and HPE had stopped SFF-8087 by 2018, and switched SAS upgrades to SFF-8643 and above (SFF-8654 to SAS-4). Scenario: Last year I upgraded a 200 rack SAS-2 cluster to SAS-3 in a bank- I plugged in SFF-8643 cables with adapters, overnight doubled throughput, no downtime. SAS compatibility is not rocket science, and failure to observe SAS compatibility will result in no boot errors. Pro tip: It is always best to ensure that HBA firmware is compatible with SAS-3 to SAS-2 transition.

• Adapter Must-Haves: Active converters >1m run.
• Firmware Check: Pre-installation update controllers.
• Testing: CrystalDiskInfo after the swap.

Choosing Between SFF-8087 and SFF-8643

Then, what to do to select SAS cable to use? Select this SAS cable according to the following guide:

• Use Pick SFF-8087 When: You have available SAS-2 infrastructure (usually older RAID-6 arrays). Good when cost-effective upgrading of SMB servers is needed – 40 percent less than HD.
• Pick SFF-8643 When: Constructing new systems that require 12Gbps+ and small layouts (data centers, edge computing). PCIe Gen4 storage is essential and every mm matters.

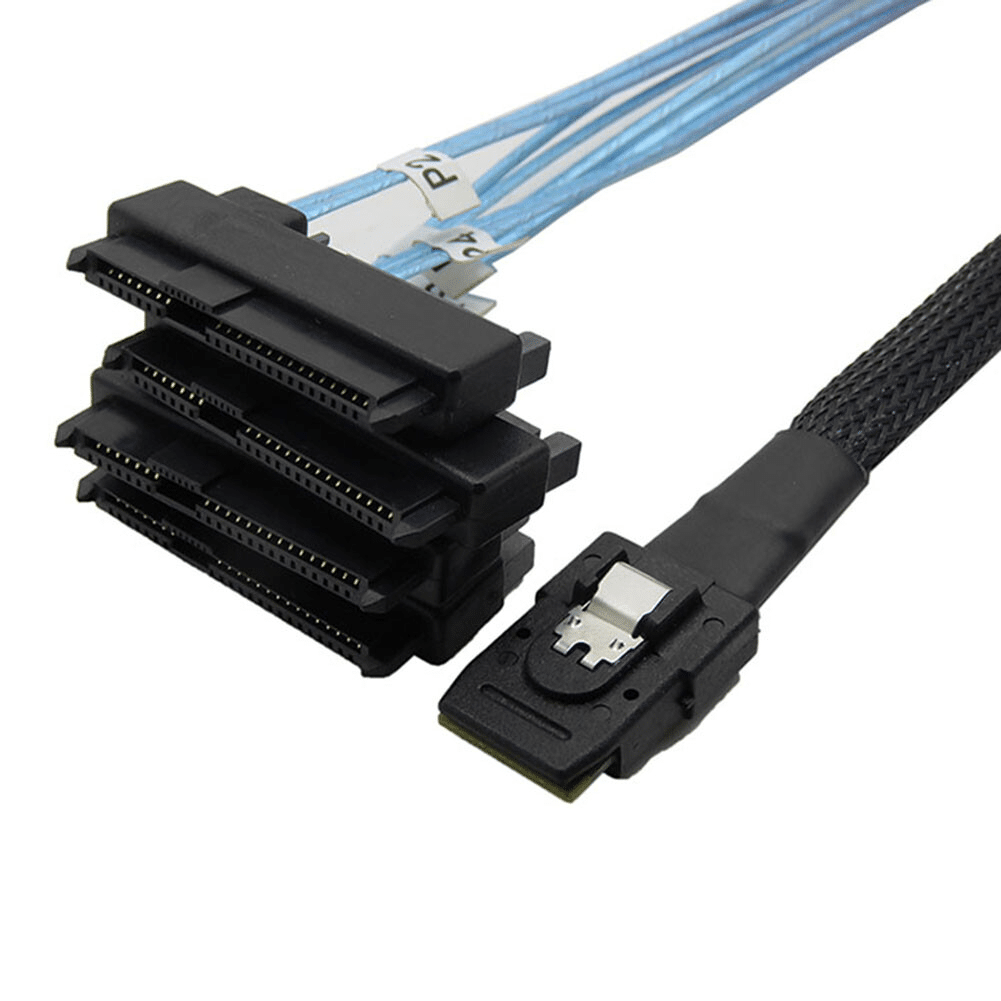

• Hybrid Tip: Custom assemblies should be used in mixed environments SFF-8643 one end, SFF-8087 breakout to four SATA drives.

On experience with SAS connector types, when your work load reaches 10TB+ daily backups, go HD now. Otherwise, SFF-8087 you cheaply bridge.

Custom SAS Cable Assemblies — The Ideal Solution

Ready-to-buy cables are effective, but the knowledge of the specific cable maker of SAS raises your installation. We also assemble SAS cable OEM in the same in Dongguan Kingda, SFF-8087 and SFF-8643-exact-length (0.3m-2m), custom labels to swap with max, complete SAS cable testing (eye diagrams, impedance sweeps).

Why custom? A cloud client required SFF-8643 cables whose ends should be color-coded when there are 500 nodes in a cluster- we delivered RoHS-compliant batches within 10 days and reduced the install time by 25 per cent. SAS cable verification guarantees 99.99 per cent signal integrity. Regardless of mini SAS cable bundle or mini HD SAS cable bundle, our China-based manufactures can produce prototypes up to millions.

Conclusion

SFF-8087 is a reliable legacy system of 6Gbps, SFF-8643 is a high density with modern 12Gbps and excellent shielding and compatibility. Straight forward storage architecture: Which storage architecture is the right one, the low-end legacy storage or the future-proof performance storage architecture?

Seeking trustworthy Mini SAS/ HD Mini SAS cables? Address Dongguan Kingda Electronic Technology Co.,Ltd professional high-speed cable solutions. Having 12+ years of experience with engineering SAS connector comparison winners, we are the people to go to when it comes to upgrades that are hassle free.
